Frequency Range
9 kHz -3.2 GHz
Resolution Bandwidth (RBW)
1 Hz ~ 1 MHz
Phase Noise
< -98 dBc/Hz

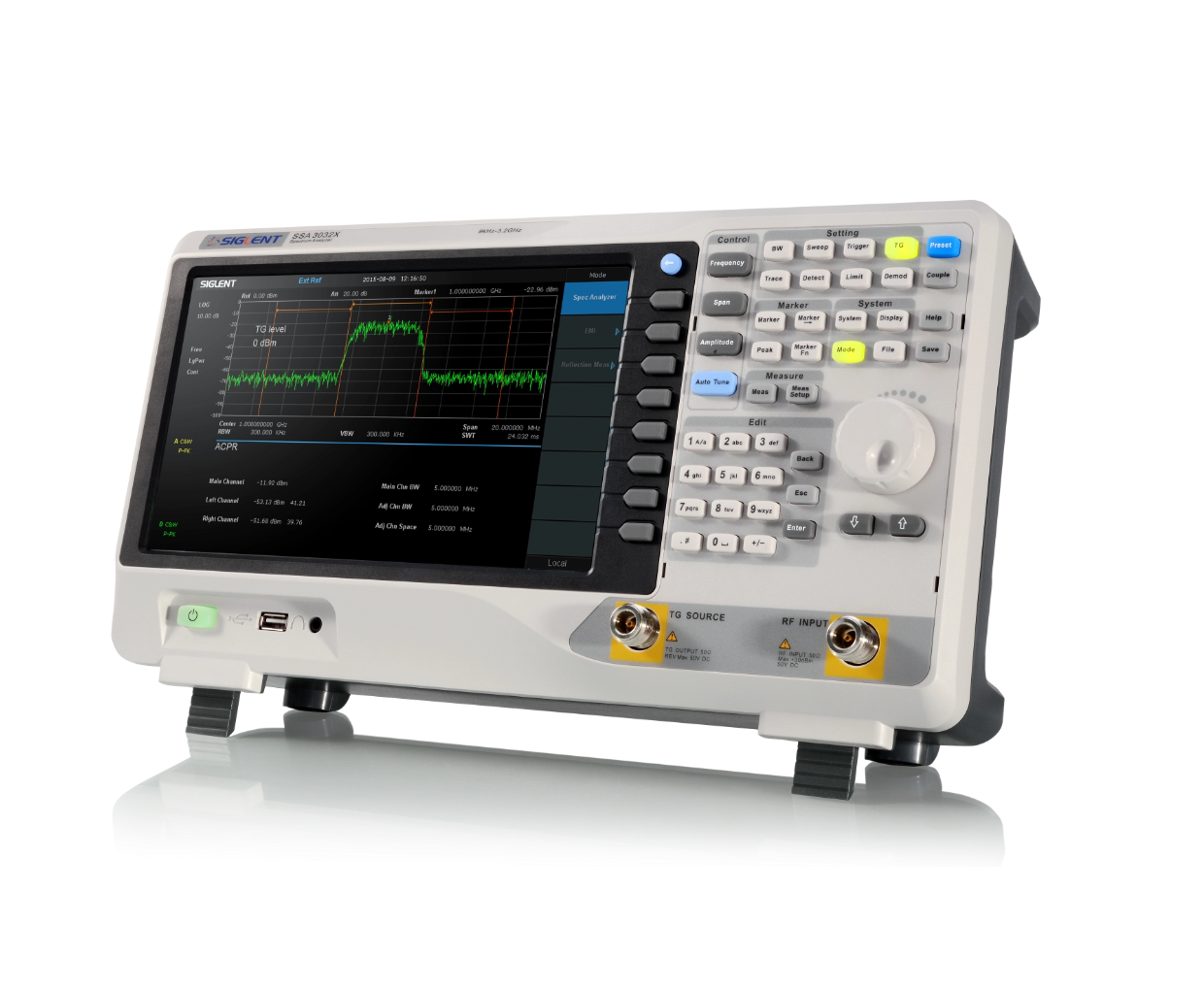

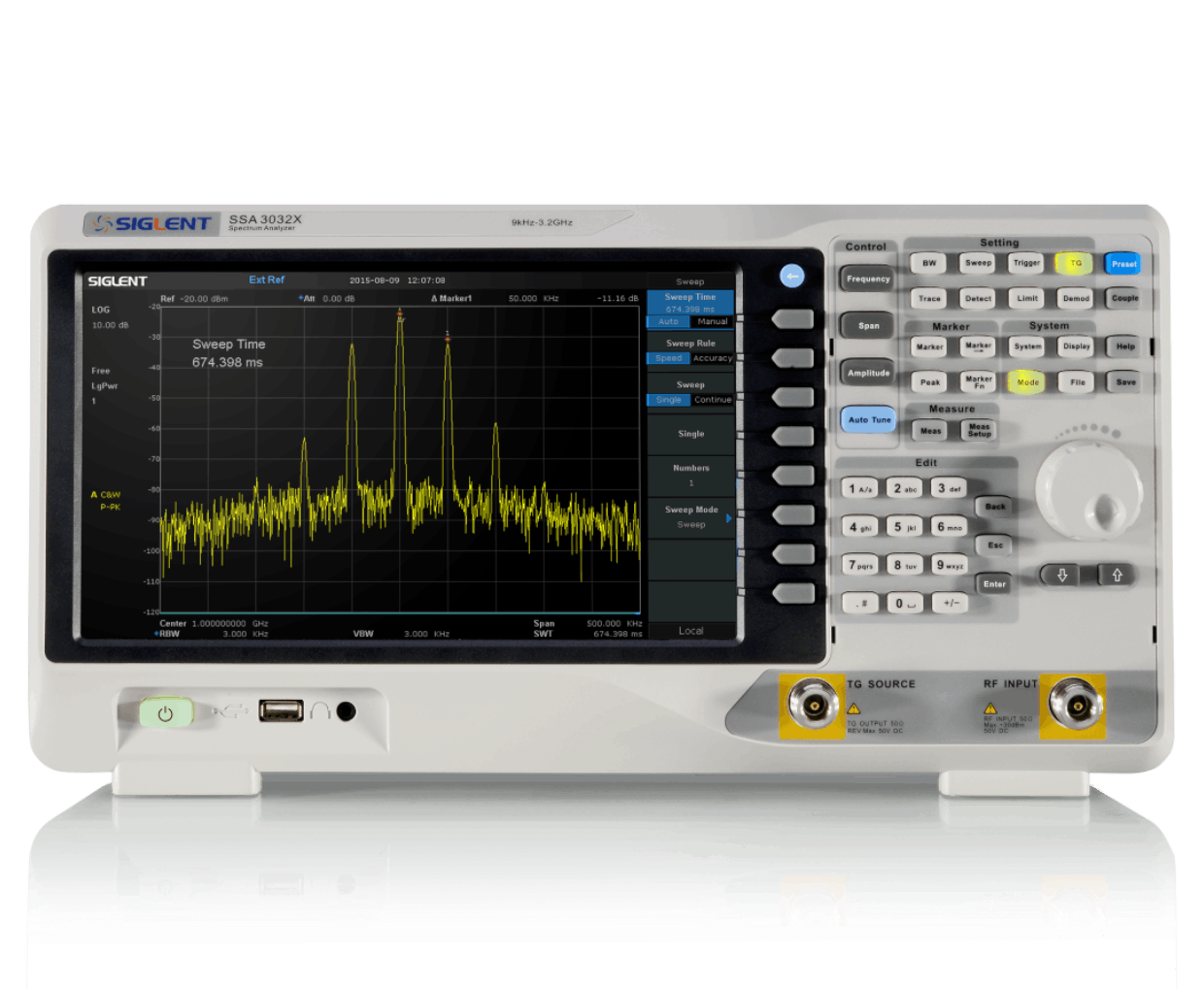

With their light weight, small size, and friendly user interface, the SSA3000X present a large, bright easy to read display, powerful and reliable automatic measurements, and plenty of impressive features. Applications include research and development, education, production, maintenance, and pre-compliance testing.
· Bandwidth 9 kHz to 2.1 GHz / 3.2 GHz, minimum resolution bandwidth 1 Hz
· Display average noise level below -161 dBm/Hz, full amplitude accuracy better than 0.7 dB
· Standard preamplifier, remote control instruction set, EasySpectrum PC software
· Free tracking generator, transmission response, VSWR measurement, signal power measurement, EMI pre-compliance test
Extensive features and accessory support for EMI diagnostics and EMI pre-compliance testing, including：
· Test compensation Correction, frequency response compensation for probe, antenna, LISN, cable
· Support Limit line , Including EMI international standard limit template, or user-defined limit line
· Compliant CISPR 16 EMI filter and quasi-peak detector for quasi-peak measurement dwell time
· Support SRF5030T near-field probe set to find interference sources for radiation, cables, PCBs, etc.
· Provide SEM5040A artificial power network for single-phase device conducted disturbance voltage measurement
· EasySpectrum PC software, supports complete EMI pre-compliance test automation implementation process
· The PC software also supports the file configuration of the whole process, which is convenient for project management.
The SSA3000X can be used as a network analyzer:
· With the tracking generator, the filter transmission response and the cable insertion can be measured
· With tracking source and external directional coupler (RB3X25), it can measure antenna and cable standing wave ratio VSWR, return loss
With variety of wireless communication signal power measurement capabilities:
· CHP, Channel Power
· ACPR, Adjacent Channel Power Ratio
· OBW, Occupied Bandwidth
· T-Power, Time Domain Power
· TOI, Third-Order Intercept
· Spectrum Monitor
