Precision-focused Function/Arbitrary Waveform Generators

SIGLENT’s function/arbitrary waveform generator series, including the SDG800 to SDG8000A models, cover frequencies from 10 MHz to 5 GHz, with a maximum sampling rate up to 12 GSa/s, demonstrating strength and versatility in the field of waveform generation. The instruments not only support up to 4 Gpts arbitrary waveform editing and output, but also have up to 16-bit vertical resolution to ensure accurate reproduction of waveform details. Both single-channel and dual-channel configurations can meet diversified testing needs.
Created with Pixso. Select Suitable Function/Arbitrary Waveform Generators

Professional-grade features that break new ground

01

Innovative EasyPulse Technology

Conventional direct digital synthesis (DDS)-based methods produce a jltter of one clock cycle when generating square or pulse waves if the sample rate and output frequency are not integer multiples. SIGLENT Technologies’ innovative EasyPulse technology overcomes this drawback，low-jitter square waves and pulses.
02

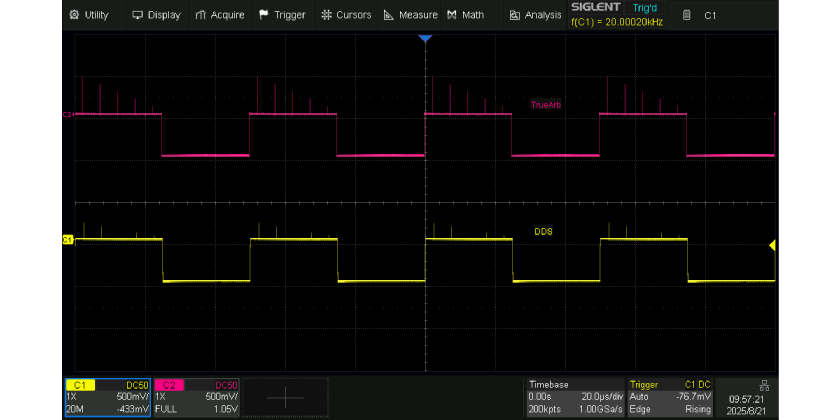

Innovative TrueArb Waveform Technology

Siglent’s TrueArb technology overcomes the jitter and distortion limitations of DDS. TrueArb uses a point by point architecture to accuracy output signals with high signal fidelity.
02

All-in-one Signal Generator

Siglent SDG generators include a variety of functions and capabilities. The SDG6000X and SDG7000A models include continuous waveform generation, pulse, arbitrary, IQ, PRBS, noise, and more. In some applications, they can be used like an RF signal generator with the IQ option. The SDG7000A also has an optional 16-bit digital output.
02

Dual Pulse Generator for Easy Power Device Testing

The SDG1000X Plus series features multi-pulse output capability with minimum rise and fall times of 10 ns. The parameters of each pulse can be individually configured for precise control of the turn-on and turn-off times. This enables measurement of the switching parameters and dynamic behavior of power devices without requiring host computer software.
02

Simplified Signal Simulation

The SigIQPro signal generation software elevates signal generation to new heights. It supports Bluetooth, IoT, custom orthogonal frequency-division multiplexing (OFDM), and custom IQ standards, and conversion of custom data formats. Users can download waveform files directly to SIGLENT signal generators for playback. When paired with the SDG7000A generator, SigIQPro seamlessly integrates simulation, design, and testing to meet various needs across all stages from design to R&D, production, and testing.
02

PRBS code type output to help BER testing

Our SDG generators output high speed digital signals with pseudo-random sequences from PRBS3 to PRBS32 and a large output range. The SDGs can also quickly select preset logic levels including TTL, LVCMOS, or differential signal types.

Function/Arbitrary Waveform Generator

SIGLENT’s proprietary EasyPulse technology delivers highly stable, low-jitter pulse wave outputs with fine-tuning capability. Additionally, the SDG6000X、SDG7000A and SDG8000A integrate advanced capabilities including arbitrary waveform generation, IQ signal generation, and PRBS pattern generation.
Created with Pixso. View All
Created with Pixso. View More

Configure your instrument

Created with Pixso.
Options
Created with Pixso.

Standard

Created with Pixso. Configure by Series

Software & Options

Software & Options

SigIQPro

Signal Generation Software

SIGLENT Technologies provides a host of software solutions that blend professionalism with efficiency.

SIGLENT also provides other host computer software to cater to your diverse needs.
