Function/Arbitrary Waveform Generator

SDG1000X Plus Series

SDG1000X Plus

Max Output Frequency

60 MHz

Max sampling rate

1 GSa/s

Vertical Resolution

16-bit

Created with Pixso.
Created with Pixso.
Created with Pixso. Quote
Created with Pixso. Datasheet
Created with Pixso. Video

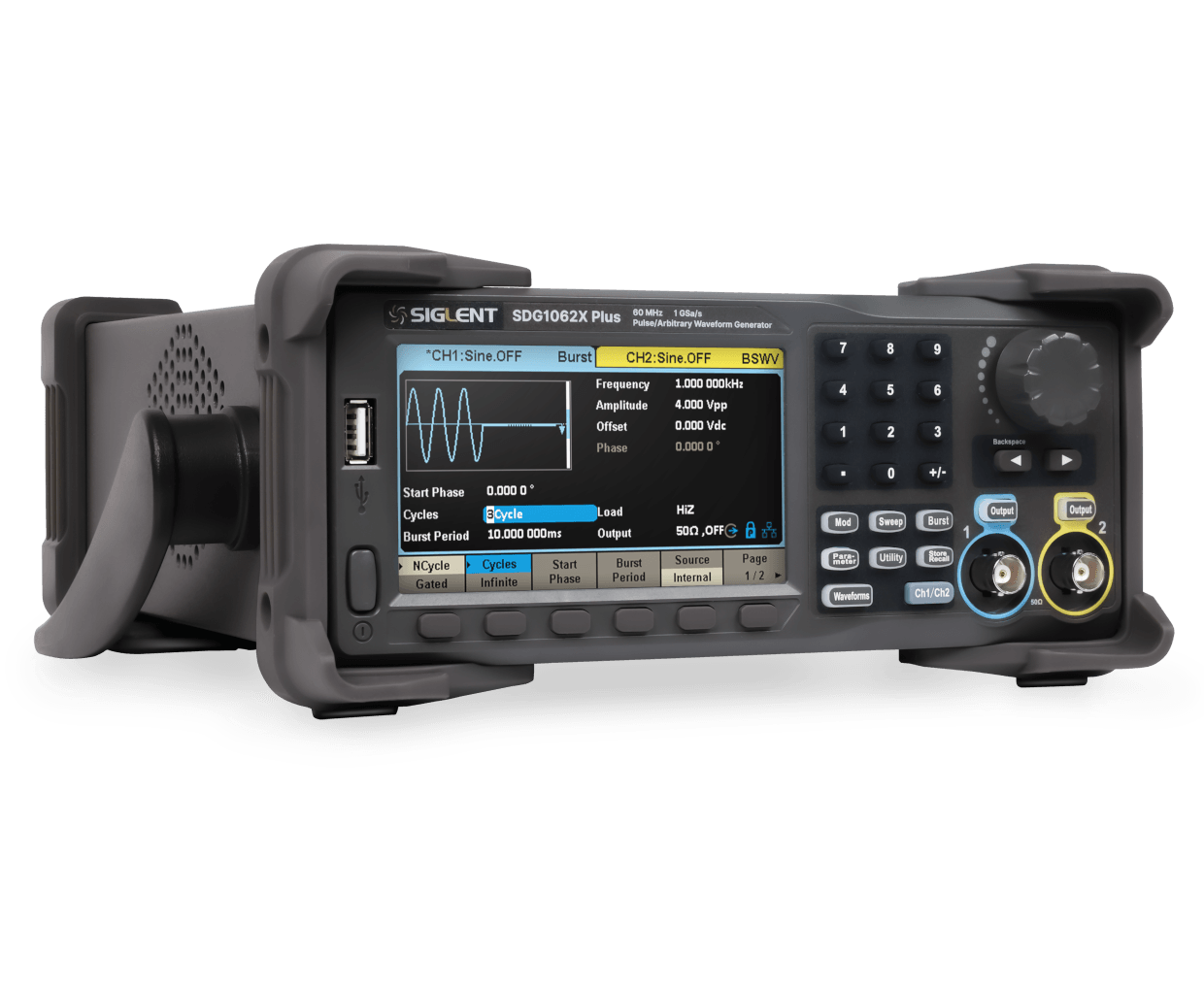

SDG1000X Plus

SDG1000X Plus

Created with Pixso.

Product Introduction

SDG1000X Plus series is a high-performance waveform generator introduced by Dingyang Technology to the market. Its EasyPulse technology ensures the high stability and low jitter of the output waveform, and its powerful waveform editing function can meet the needs of different application scenarios.

Key Features

  • Dual output channels, maximum 60 MHz output frequency, maximum 20 Vpp output amplitude
  • 1 GSa/s Sampling rate, 16-bit vertical resolution
  • Arbitrary wave length 8 Mpts/CH
  • Maximum 40 Mbps PRBS output
  • Multi-pulse output function

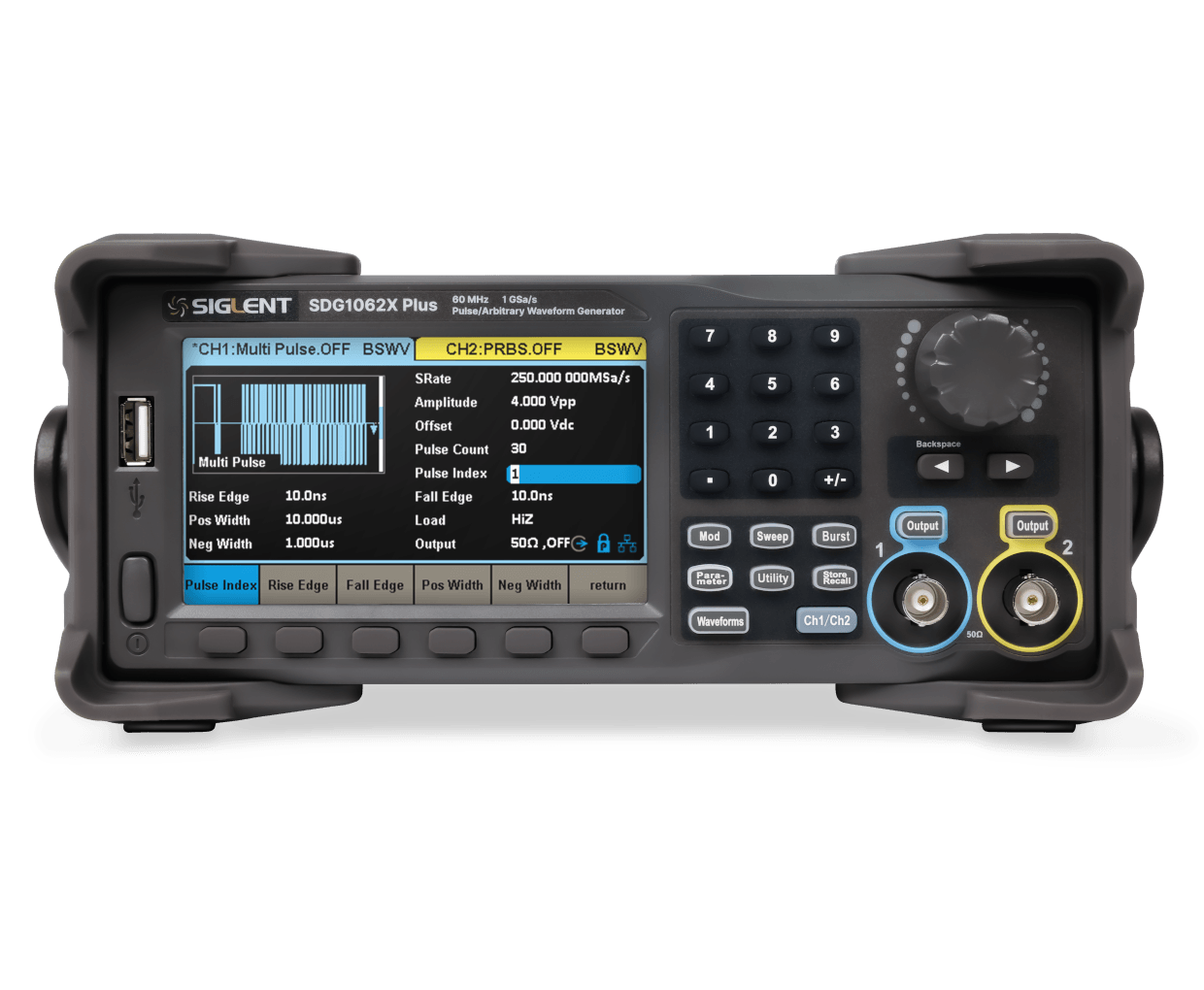

  • 4.3-inch display

Product advantage

High-performance Sampling System

High resolution and sampling rates are critical for accurate signal simulation and analysis. The SDG1000X Plus series offers a high-performance sampling system with 16-bit vertical resolution and a 1 GSa/s sampling rate, delivering precise signal details and ensuring high fidelity. It is well-suited for applications requiring accurate signal generation, such as the development and testing of communication equipment.

8 Mpts/CH Arbitrary Waveform

The SDG1000X Plus supports 8 Mpts of waveform memory, enabling the generation of long-duration, complex modulated signals for high-precision testing. It accurately simulates modulated signals and pulse sequences for modern communication systems, ensuring system performance. It is also suited for high-speed chip testing in the semiconductor industry, where precise timing and amplitude control are critical for achieving test accuracy. Furthermore, researchers in the biomedical field can utilize it to simulate complex bioelectric signals, advancing the study of electrical signal transmission in living organisms and facilitating the development of medical devices.

PRBS code type output to help BER testing

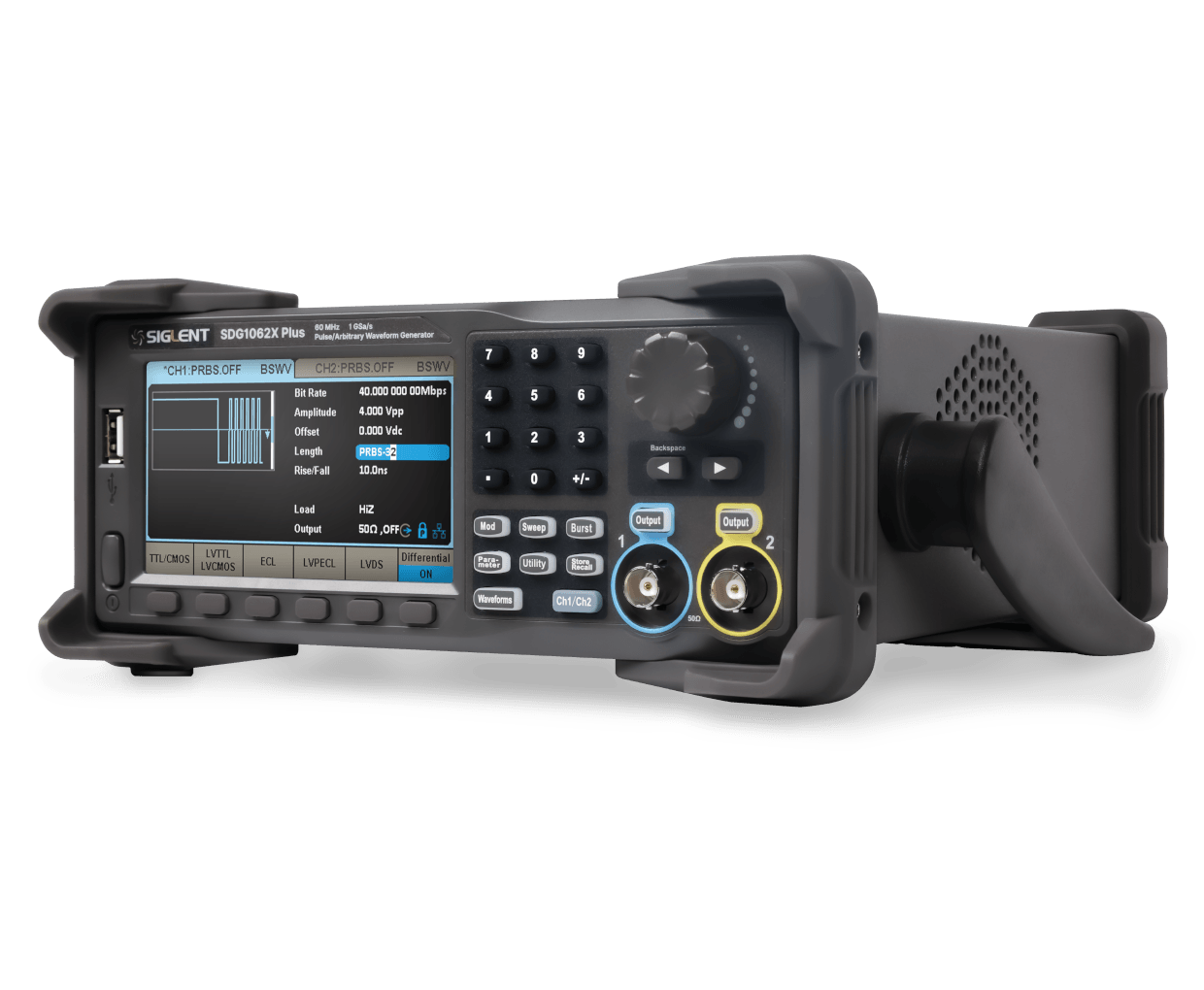

Provides PRBS3 ~ PRBS32 multiple pattern outputs, the rate is arbitrarily adjustable between 10-6 bps ~ 40 Mbps, and the edge is arbitrarily adjustable between 10 ns ~ 1us.

Dual Pulse Generator for Easy Power Device Testing

The SDG1000X Plus incorporates multi-pulse output functionality with rise/fall times as low as 10 ns. Each pulse can be individually configured, allowing engineers to generate precise gate drive signals and measure switching parameters and dynamic characteristics of power devices. This functionality significantly enhances the testing efficiency and accuracy of power devices such as IGBTs and MOSFETs.

Webserver Remote Control

The built-in Webserver function offers engineers a convenient way to remotely control and configure the instrument via a network, simplifying testing workflows, particularly in environments that require frequent parameter adjustments.

Product parameter

View All Parameters
Created with Pixso.

Configure your instrument

Created with Pixso.
Options
Created with Pixso.
Accessories

Models

Add to Compare ModelsMax Output FrequencyMax Sampling RateVertical ResolutionWaveform LengthChannels Price

Resources

Universal accessories
Created with Pixso. Created with Pixso.

Product
Description
USB Cable
USB Cable

USB-A to USB-B. Used to connect instrument to PC for communication.

Power cord
Power cord

The instrument comes standard with a power cord that conforms to the national standard of the user. Additional power cords in different regions can be purchased separately.

BNC Crocodile clip cable
BNC Crocodile clip cable

One BNC to alligator clip cable is provided as standard.

SDG1000X Plus Quick Start
SDG1000X Plus Quick Start

Quick-use guide as standard for the instrument.

Universal accessories
Created with Pixso. Created with Pixso.

Product
Description
USB-GPIB Adapter
USB-GPIB Adapter

Expand the instrument’s USB interface into a GPIB interface. Using GPIB commands allows for easier execution of various operational tasks. The USB interface adheres to the USB 2.0 specification, while the GPIB interface complies with the IEEE 488.2 standard.

SPA1010 Power Amplifier
SPA1010 Power Amplifier
SPA1010 The power amplifier can be matched with Dingyang full series function/arbitrary waveform generator products to realize the power amplification of its signal output.
20dB Attenuator
20dB Attenuator
Used for 20dB attenuation of signal power output by signal source, BNC connector
BNC Coaxial Cable
BNC Coaxial Cable

Double BNC connector coaxial cable

SDG/SDM-RMK Rack installation
SDG/SDM-RMK Rack installation
The rack mounting option is designed to mount the instrument to the standard 19-inch rack specified by EIA, and it is compatible with Dingyang full series SDG function/arbitrary waveform generator and SDM series digital multimeter.
