Function/Arbitrary Waveform Generator

SDG3000X Series

SDG3000X

Max Output Frequency

200 MHz

Max sampling rate

1.2 GSa/s

Vertical Resolution

16-bit

SDG3000X

Product Introduction

The SDG3000X series dual-channel function/arbitrary waveform generator has a maximum bandwidth of 200MHz, an excellent sampling system specifications of 1.2 GSa/s sampling rate and 16-bit vertical resolution. Based on the traditional DDS technology, it adopts the innovative TrueArb and EasyPulse technologies, which overcome the inherent defects of DDS technology in outputting arbitrary waves and square waves/pulses, and can provide users with high-fidelity, low-jitter signals. In addition, the SDG3000X also provides PRBS pattern generation, sequence, dual pulse, and vector signal output functions to meet a wider range of application needs.

Key Features

Dual channels, maximum output frequency 200 MHz, maximum output amplitude 20 Vpp
1.2 GSa/s sampling rate, 16-bit vertical resolution
Supports sequence wave playback function, with a maximum waveform memory of 40 Mpts per channel
Supports PRBS up to 120 Mbps
Multi-pulse output function
Can be used as a noise generator/harmonic generator /IQ signal generator
7-inch display touch screen

Product advantage

Advanced Arbitrary and Complex Signal Generation

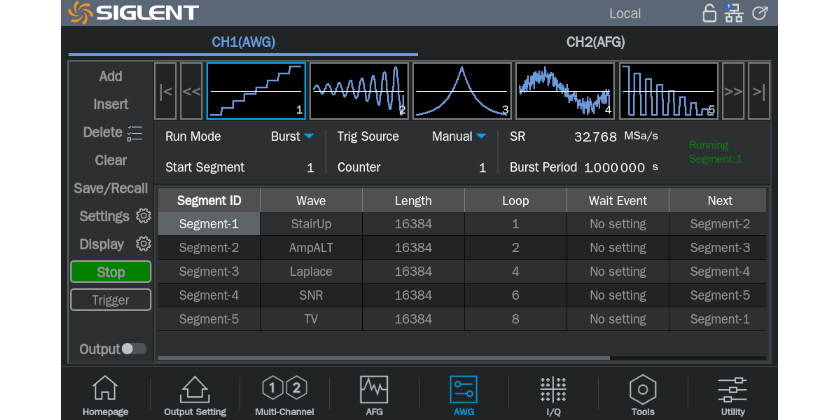

With 196 built-in arbitrary waveforms and a memory depth of up to 40 Mpts per channel, the SDG3000X provides the capacity to store and accurately reproduce complex signals. It also features a flexible sequence mode, allowing users to define playback order and loop counts for each waveform segment—ideal for custom and repetitive test scenarios.

PRBS Signal Output

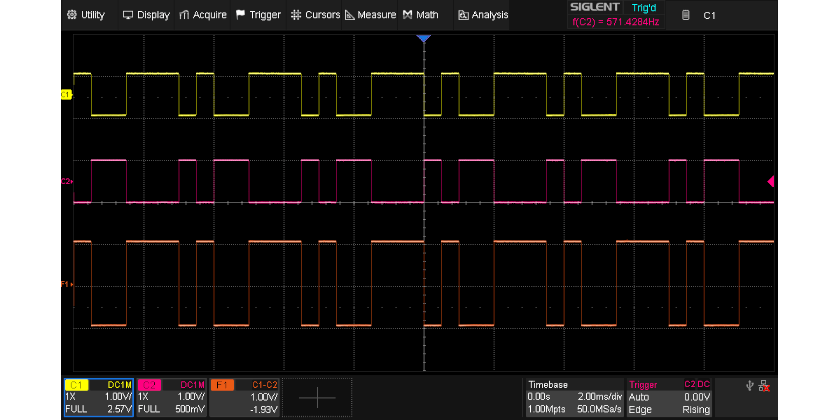

It supports PRBS signal output up to 120 Mbps, baseband and IF IQ signal generation with symbol rates from 250 to 50 MSymb/s, and a wide range of modulation types including AM, DSB-SC, FM, PM, FSK, ASK, PSK, and PWM. With built-in Sweep and Burst modes, the SDG3000X delivers comprehensive support across a variety of test environments—from education and R&D to industrial power device testing.

Double-Pulse Testing for Power Semiconductors

Double-pulse testing is critical in analyzing the dynamic behavior of power semiconductor devices such as IGBTs and SiC MOSFETs, particularly for evaluating switching losses and conduction characteristics. The SDG3000X offers an ideal platform for this application.
With channel tracking and phase synchronization, users can precisely control pulse widths and timing intervals to simulate realistic switching behavior. Combined with remote control via USB/LAN, and oscilloscope synchronization, the SDG3000X simplifies the creation of automated test systems—enhancing both testing efficiency and data reliability.

High-Fidelity Signal Generation

The SDG3000X EasyPulse technologies is optimized for pulse signal generation. It is capable of producing pulses as narrow as 8 ns with fast rising/falling edges that remain stable across frequency variations. It allows for wide-ranging, fine-grained adjustments of edge timing and pulse width, making it ideal tool for generating high-precision pulse signals.

Precision Signal Output

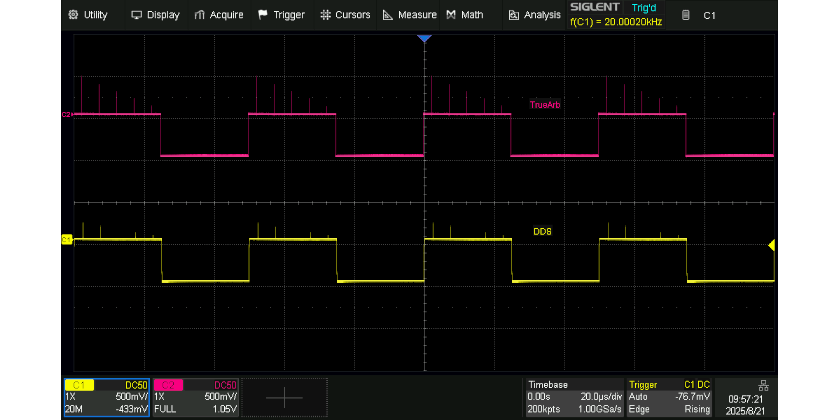

TrueArb enables point-by-point waveform generation across a sampling range of 10 mSa/s to 600 MSa/s, maintaining waveform integrity while delivering ultra-low jitter (as low as 150 ps) and total harmonic distortion (THD) below 0.075%, ensuring superior signal fidelity.

Intelligent User Experience

Equipped with a 7-inch touchscreen, the SDG3000X allows intuitive parameter settings and signal viewing. It supports MATLAB and Python script import and oscilloscope linkage for automatic calibration. A built-in high-precision frequency counter, along with multiple communication interfaces such as LAN, USB, and GPIB, and a built-in WebServer, ensures easy remote access and synchronization across multiple devices—streamlining workflows and boosting productivity.
