Function/Arbitrary Waveform Generator

SDG800 Series

SDG800

Max Output Frequency

30 MHz

Max sampling rate

125 MSa/s

Vertical Resolution

14 bit

Created with Pixso.
Created with Pixso.
Created with Pixso. Quote
Created with Pixso. Datasheet
Created with Pixso. Video

SDG800

SDG800

Created with Pixso.

Product Introduction

Specially designed for basic laboratories, SDG800 series is favored for its economical price and practical functions. It supports a variety of standard waveforms and simple arbitrary waveform generation, and the frequency is as high as 30 MHz, which can meet the needs of daily teaching and basic scientific research.

Key Features

  • Single channel. Maximum output 30 MHz continuous signal.
  • 125 MSa/s sampling rate, 14-bit vertical resolution.
  • 16 kpts Arbitrary Waveform Length
  • Abundant Modulation types: AM\DSB-AM\FM\PM\FSK\ASK\PWM\SWEEP\BURST
  • Standard arbitrary waveform editing software.
  • 3.5 inch display

Product advantage

Multiple Types of Waveform Output

SDG800 supports Sine, Square, Pulse, Triangle, Gaussian White Noise and other waveforms output.

· Sine wave – maximum output frequency 30 MHz
· Square wave characteristics – duty cycle up to 20% -80%; rise time less than 24 ns
· Pulse characteristics – minimum pulse width 48 ns; rise/fall time down to 20 ns
· Triangle wave characteristics – symmetry 0% – 100%
· DC signal – 0 to ±10 V output

Innovative EasyPulse technology

With traditional DDS technology, there will be a jitter of one sampling period when sampling rate and output frequency are not integer multiple. With EasyPulse technology, this can be solved perfectly. In addition to output low jitter Square and Pulse signals, EasyPulse tech has advantages by:

· Pulse frequency up to 5 MHz
· The rise and fall time can be set separately, fastest 20 ns
· Pulse width finely adjustable, down to 48 ns
· Low jitter

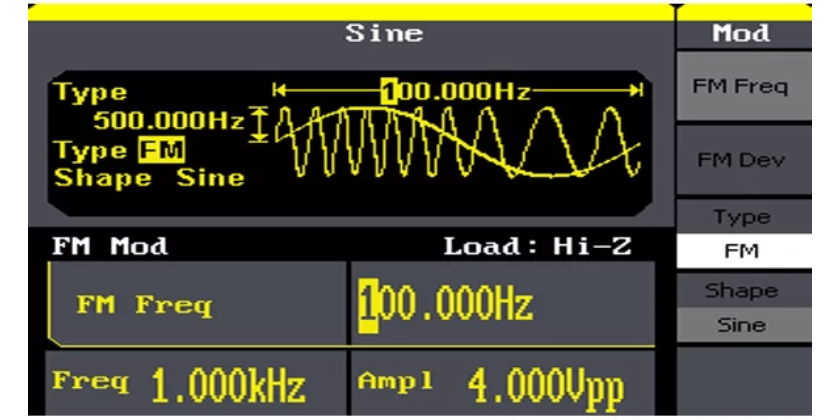

Complex Signal Generation Capability

The SDG800 has powerful waveform generation capabilities. It can implement various types of modulations, sweeps, burst output and signal synthesis. It supports internal, external, and manual trigger sources.

· Supports multiple modulations such as AM, FM, PM, FSK, ASK, DSB-AM and PWM
· Support linear and logarithmic sweep mode
· Support “N Cycle” and “Gate” burst mode

Arbitrary Waveform Output

· 16 kpts arbitrary waveform length
· 14 bit vertical resolution
· Built-in 46 kinds of arbitrary waveforms
· Standard powerful arbitrary waveform editing software, equipped with standard waveforms (Sine, Square, Ramp, Pulse, ExpRise, ExpFall, Sinc, Noise and DC) and manual, line, coordinates, formula to create arbitrary waveforms per your needs.

Product parameter

View All Parameters
Created with Pixso.

Configure your instrument

Created with Pixso.
Options
Created with Pixso.
Accessories

Models

Add to Compare ModelsMax Output FrequencyMax Sampling RateVertical ResolutionWaveform LengthChannels Price

Resources

Universal accessories
Created with Pixso. Created with Pixso.

Product
Description
USB Cable
USB Cable

USB-A to USB-B. Used to connect instrument to PC for communication.

Power cord
Power cord

The instrument comes standard with a power cord that conforms to the national standard of the user. Additional power cords in different regions can be purchased separately.

SDG800 Quick Start
SDG800 Quick Start

Quick-use guide as standard for the instrument.

BNC Crocodile clip cable
BNC Crocodile clip cable

One BNC to alligator clip cable is provided as standard.

Universal accessories
Created with Pixso. Created with Pixso.

Product
Description
USB-GPIB Adapter
USB-GPIB Adapter

Expand the instrument’s USB interface into a GPIB interface. Using GPIB commands allows for easier execution of various operational tasks. The USB interface adheres to the USB 2.0 specification, while the GPIB interface complies with the IEEE 488.2 standard.

SPA1010 Power Amplifier
SPA1010 Power Amplifier
SPA1010 The power amplifier can be matched with Dingyang full series function/arbitrary waveform generator products to realize the power amplification of its signal output.
20dB Attenuator
20dB Attenuator
Used for 20dB attenuation of signal power output by signal source, BNC connector
BNC Coaxial Cable
BNC Coaxial Cable

Double BNC connector coaxial cable

SDG/SDM-RMK Rack installation
SDG/SDM-RMK Rack installation
The rack mounting option is designed to mount the instrument to the standard 19-inch rack specified by EIA, and it is compatible with Dingyang full series SDG function/arbitrary waveform generator and SDM series digital multimeter.
