Spectrum/Signal Analyzers

SSA3000X-R

SSA3000X-R

Frequency Range

9 kHz ~ 7.5 GHz

Real Time Analysis Bandwidth

40 MHz

Resolution Bandwidth (RBW)

1 Hz ~ 3 MHz

Created with Pixso.
Created with Pixso.
Created with Pixso. Quote
Created with Pixso. Datasheet
Created with Pixso. Video

SSA3000X-R

SSA3000X-R

Created with Pixso.

Product Introduction

SIGLENT SSA3000X-R real-time spectrum analyzers are powerful and flexible tools for complex RF signal monitoring and analysis. With a capability of 40 MHz analysis bandwidth and 7.2 µs 100% POI, the SSA3000X-R spectrum analyzers can provide multi-dimensions data displays, advanced triggering, and RF data capturing, to solve modern RF spectrum challenges, like hopping frequency, conflict channel, spectrum interference, etc. They also provide a standard tracking generator for network analysis, optional wideband digital modulation analysis, and EMI pre-compliance test.

Key Features

  • Spectrum Analyzer Frequency Range from 9 kHz up to 3.2 GHz / 5.0 GHz / 7.5 GHz
  • Maximum Real Time bandwidth 40 MHz
  • Minimum Signal Duration with 100% POI, 7.2 us
  • Spectrum acquisition is 50,000 frames.
  • -165 dBm/Hz Displayed Average Noise Level (Typ.)
  • -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)<
  • Now with VNA and DTF functions, free!

Product advantage

High-speed and stable real-time spectrum acquisition, analysis and display

The SSA3000X-R real-time spectrum analyzer can set the frequency template trigger function to seamlessly collect and analyze signals. It is perfect tool for observation and analysis of small, elusive and frequency hopping signals.

· Optional real-time analysis bandwidth: standard 25 MHz, 40 MHz
· Multiple display modes: Density, Spectrogram, PvT, 3D.
· Configurable frequency mask trigger function
· Optional transmission response, standing wave ratio measurement, signal power measurement and EMI pre-compatibility test.

Vector Network Analysis

The frequency range is from a minimum of 10 MHz to a maximum of 1.5 GHz:

· Vector network analysis, support simultaneous measurement of amplitude and phase response, and vector S11 and S21 parameters;
· 40 dB in single port direction, transmission dynamic range over 70 dB, support for port expansion and configurable speed factor;
· Display reflection/transmission coefficient, return/insertion loss, phase, group delay, standing wave ratio, Smith chart, polar circle chart, etc.
· DTF cable and antenna measurement, cable and antenna parameter measurement and analysis based on network analysis time domain measurement, can accurately locate cable faults, impedance analysis and other functions;
· Support 3.5 G range N-type OSL mechanical calibration;

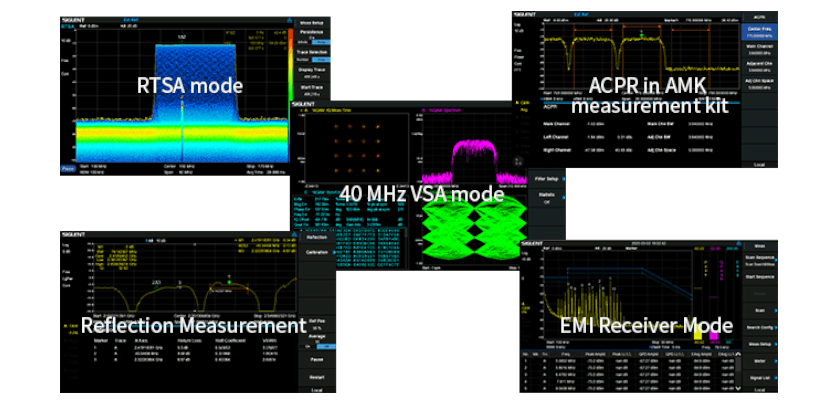

Multi-function SA

SSA3000X-R is not only a RTSA, but a versatile instruments.

· RTSA mode: Analyze elusive signals in real-time.
· SA mode: Perform as a normal spectrum analyzer – reflection and advanced measurements.
· Modulation analysis: Up to 40 MHz (option) wideband modulation analysis.
· EMI Receiver Mode: Newly added EMI reicever Mode to perform EMI-pre compliance tests.

Abundant Measurement Function

SSA3000X-R has a variety of measurement modes to meet different test requirements:

· Spectrum analysis mode: minimum resolution bandwidth of 1 Hz and display average noise level as low as -165 dBm/Hz.
· Real-time spectrum mode: supports various display modes such as Density, 3D, Spectrogram and PvT, and observes complex transient signals in multiple dimensions.
· Modulation analysis mode: AM/FM, ASK/FSK/PSK/MSK/QAM measurement and analysis are supported.
​· Reflected standing wave measurement: use external bridge to measure S11 voltage standing wave ratio and debug antenna port matching.

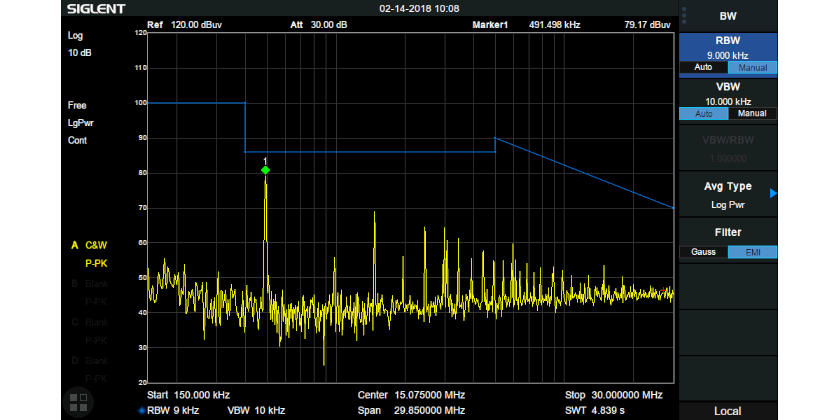

​· EMI pre-compatibility test: logarithmic frequency axis and limit line are standard, and EMI filter and quasi-peak detector can be optional.

Product parameter

View All Parameters
Created with Pixso.
Comparative Data SSA3000X-R Keysight N9020B-RT1 Tek RSA306B R&S FSVR7
Frequency Range 9 kHz ~ 3.2/5.0/7.5 GHz 10 Hz ~ 3.6/8.4 GHz(option 503/508) 9 Hz – 6.2 GHz 10 Hz - 7 GHz
Real-time Bandwidth 25 MHz; 40 MHz(Option） 25 MHz; 160 MHz(Option) 40 MHz 40 MHz
Minimum Signal Duration with 100% POI 7.2 us 17.3 us 27 us 24 us
SFDR -60 dBc 70 dBc 60 dBc 70 dBc
DANL -165 dBm/Hz -166 dBm/Hz -160 dBm/Hz -165 dBm/Hz
Phase Noise @ 10 kHz Offset Typical -98 dBc/Hz -114 dBc/Hz -84 dBc/Hz -106 dBc/Hz
Total Amplitude Accuracy < 0.7 dB < 0.39 dB < 1.0 dB < 0.4 dB
RBW 1 Hz – 3 MHz 1 Hz - 8 MHz 1.18 Hz ~ 8 MHz 1 Hz - 10 MHz
Preamplifier Standard Optional Optional Optional
TG 100 kHz - 3.2/5/7.5 GHz，Standard N/A N/A N/A
Modulation Analysis AM/FM;ASK/FSK/MSK/PSK/DPSK/QAM IQ AM/FM/PM IQ
Advanced Measurement Optional Optional Optional Optional
EMI Pre-compliance Test Optional Optional Optional Optional
Reflection Measurement Optional Not Support Not Support Not Support
Touch Screen Capacitance touch screen Touch Screen N/A Support
External Mouse & Keyboard Support Support Support Support
Web Server Support Support Not Support Support
Interface USB host/device/LAN/USB-GPIB USB host/device/LAN/GPIB Micro USB USB host/device/LAN/GPIB/VGA
Screen 10.1 inch TFT-LCD,1024*600 10.6 inch 1280*768 PC 8.4 inch 800*600

Note: The above prices and parameters were collected in official website on December 19th, 2019. In case of any discrepancy, the official website shall prevail.

Configure your instrument

Created with Pixso.
Options
Created with Pixso.
Accessories

Models

Add to Compare ModelsFrequency RangeMax Analysis BandwidthPhase Noise（typ.）Display Average Noise Level (DANL)Vector Network Analysis RangeResolution Bandwidth (RBW)Tracking Generator Price

Resources

Universal accessories
Created with Pixso. Created with Pixso.

Product
Description
USB Cable
USB Cable

USB-A to USB-B. Used to connect instrument to PC for communication.

Power cord
Power cord

The instrument comes standard with a power cord that conforms to the national standard of the user. Additional power cords in different regions can be purchased separately.

SSA Series QuickStart
SSA Series QuickStart

Quick guide included with the instrument.

Universal accessories
Created with Pixso. Created with Pixso.

Product
Description
N-BNC-2L
N-BNC-2L

2 GHz bandwidth, Length 0.7 m (27.6 inches)

Click to view the RF cable and connector manual

N-N-6L
N-N-6L

6 GHz bandwidth, Length 0.7 m (27.6 inches)

Click to view the RF cable and connector manual

N-SMA-6L
N-SMA-6L

6 GHz bandwidth, Length 0.7 m (27.6 inches).

Click to view the RF cable and connector manual

N-N-18L
N-N-18L

18 GHz bandwidth, Length 1.0 m

Click to view the RF cable and connector manual

N-SMA-18L
N-SMA-18L

18 GHz bandwidth, Length 1.0 m

Click to view the RF cable and connector manual

UkitSSA3X
UkitSSA3X

Reflection bridge, 1 MHz to 2.5 GHz; 2 x N(M)-N(M)

Click to view the RF cable and connector manual

F503FE
F503FE

Mechanical Calibration Kit, Type N – Female, Open (F), Short (F), Load (F), Through (F–F), 50 Ω, DC – 4.5 GHz

Click to view the calibration kit manual

F503ME
F503ME

Mechanical Calibration Kit, Type N – Male, Open (M), Short (M), Load (M), Through (M–M), 50 Ω, DC – 4.5 GHz

Click to view the calibration kit manual

F504FS
F504FS

Mechanical Calibration Kit, Type N – Female, Open (F), Short (F), Load (F), Through (F–F), 50 Ω, DC – 9 GHz

Click to view the calibration kit manual

F504MS
F504MS

Mechanical Calibration Kit, Type N – Male, Open (M), Short (M), Load (M), Through (M–M), 50 Ω, DC – 9 GHz

Click to view the calibration kit manual

F603FE
F603FE

Mechanical Calibration Kit, 3.5mm – Female, Open (F), Short (F), Load (F), Through (F–F), 50 Ω, DC – 4.5 GHz

Click to view the calibration kit manual

F603ME
F603ME

Mechanical Calibration Kit, 3.5mm – Male, Open (M), Short (M), Load (M), Through (M–M), 50 Ω, DC – 4.5 GHz

Click to view the calibration kit manual

F604FS
F604FS

Mechanical Calibration Kit, 3.5mm – Female, Open (F), Short (F), Load (F), Through (F–F), 50 Ω, DC – 9 GHz

Click to view the calibration kit manual

F604MS
F604MS

Mechanical Calibration Kit, 3.5mm – Male, Open (M), Short (M), Load (M), Through (M–M), 50 Ω, DC – 9 GHz

Click to view the calibration kit manual

SRF5030T
SRF5030T

Three magnetic field near-field probes (5 mm, 10 mm, 20 mm) and one electric field near-field probe (5 mm) with frequency range of 300 kHz ~ 3 GHz and resolution of 5 mm, 10 mm, 20 mm are suitable for EMI radiation interference and intensity detection.

Click to view the calibration kit manual

Portable soft BAG-S2
Portable soft BAG-S2

Portable soft BAG-S2，suitable forSSA3000X Plus， SSA3000X， SVA1000X，SSA1000X，SDS5000X，SDS3000X HD，SDS3000X，SDS2000X，SDS2000X Plus series

USB-GPIB Adapter
USB-GPIB Adapter

Expand the instrument’s USB interface into a GPIB interface. Using GPIB commands allows for easier execution of various operational tasks. The USB interface adheres to the USB 2.0 specification, while the GPIB interface complies with the IEEE 488.2 standard.

SVA-TB01
SVA-TB01
Radio frequency experiment teaching board
SSA-RMK
SSA-RMK

6U high 482.6 mm wide

SEM5000A Electronic Calibration Kit
SEM5000A Electronic Calibration Kit

Electronic Calibration Kit: frequency range up to 4.5/9/13.5/26.5GHz, the RF connectors come in three forms: SMA female, 3.5mm female, and Type-N female.

Click to view the calibration parts manual

SSM5000A series switch matrix
SSM5000A series switch matrix
The frequency range is 9kHz~26.5GHz, which is suitable for all vector network products of Dingyang Technology. A single unit can expand the output ports to 24, and can continue to stack.
SSU5000A series mechanical switches
SSU5000A series mechanical switches
The working frequency range is DC-50GHz, and it contains 1-4 independent SPDT mechanical switches with SMA or 2.4mm connectors, and supports TTL level control.

All options
Created with Pixso. Created with Pixso.

Product
Description
SSA3000XR-AMA
SSA3000XR-AMA

Analog modulation analysis (option), AM/FM

SSA3000XR-AMK
SSA3000XR-AMK

Advanced measurement suite, which can measure channel power, adjacent channel power ratio, occupied bandwidth, time domain power, carrier-to-noise ratio, third-order intermodulation analysis, harmonic analysis and waterfall diagram.

SSA3000XR-EMI
SSA3000XR-EMI

EMI measurement kit (option): includes EMI filter and quasi-peak detector, PC upper computer software.

SSA3000XR-RT40
SSA3000XR-RT40

40 MHz real-time analysis bandwidth

SSA3000XR-WDMA
SSA3000XR-WDMA

Digital modulation analysis (option): ASK/FSK/PSK/MSK/QAM, and the bandwidth of demodulation analysis is the same as that of real-time analysis.
