RF/Microwave Signal Generator

SSG6000A Series

SSG6000A

Frequency Range

100 kHz~67 GHz

Phase Noise

-149 dBc / Hz @ 1 GHz, 10 kHz offset (typ.) option LPH2

Maximum output power

+30 dBm（opt.）

Created with Pixso.
Created with Pixso.
Created with Pixso. Quote
Created with Pixso. Datasheet
Created with Pixso. Video

SSG6000A

SSG6000A

Created with Pixso.

Product Introduction

The SSG6000A is designed to provide high performance signal quality that meets the stringent requirements of the latest microwave and millimeter wave testing while extending customer value in size, speed, and cost. With standard OCXO reference hardware module inside ensures high-precision and high stability signal output. It is not only an ideal local oscillator and clock source, but also a high-performance analog signal source suitable for applications in R&D and production.

Key Features

  • Frequency up to 13.6 GHz / 20 GHz / 40 GHz / 67 GHz
  • 0.001 Hz frequency setting resolution
  • Maximum level setting of +30 dBm (opt HP20/HP40)
  • Phase noise –149 dBc/Hz @1 GHz, 10 kHz offset (typ.) with option LPH2
  • Standard AM/FM/PM modulation
  • Standard OCXO and step attenuator (0 to 110 dB, 10 dB step)
  • Pulse modulation and pulse train generator (option)

Product advantage

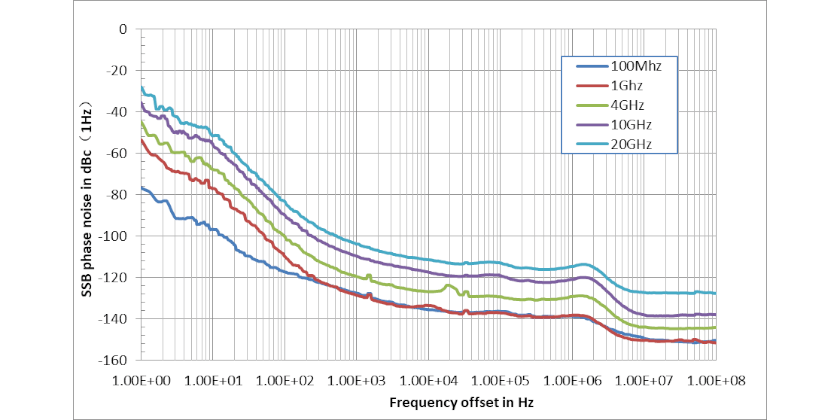

Excellent SSB Phase Noise

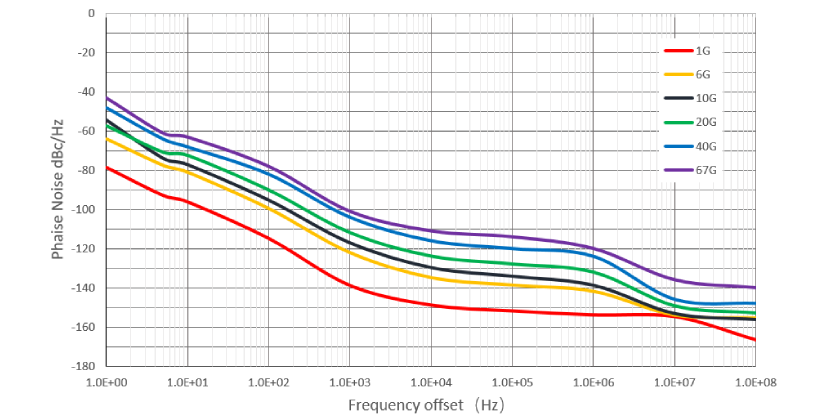

The SSG6000A signal generator is built to deliver outstanding signal purity across a broad frequency range of 100 kHz to 67 GHz, even at high output power levels. Excellent phase noise of -149 dBc / Hz @ 1 GHz, 10 kHz offset (typ.)  with option LPH2, low sub harmonic signal components of < –80 dBc and low broadband noise of –155 dBc gives you confidence that you are testing your device and not the limits of your instrumentation.

Coupled with exceptional frequency and power stability, the SSG6000A is a great solution for applications including LO emulation, receiver, ADC/DAC, and components testing

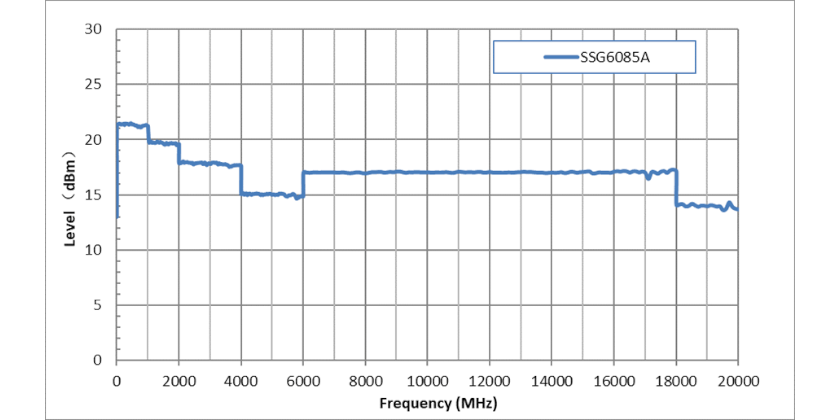

High and Stable Output Power

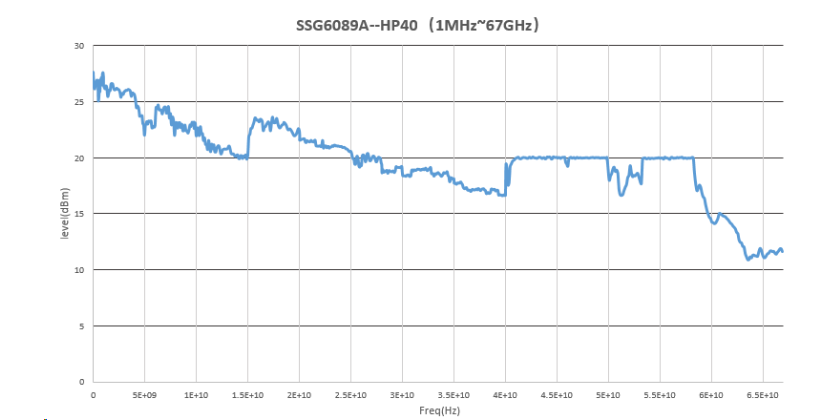

SSG6000A has high frequency and power stability in the working temperature range of 0~50℃. Long term stability is important in aging and lifecycle tests that can last days or weeks. With standard OCXO reference hardware module inside ensures high-precision and high stability signal output. High output power of +30 dBm（opt.） can test high-power devices without an external amplifier, and overcome the loss of the test system with more accurate and stable.

The combination of high output power, low harmonics and standard step attenuation is suitable for characterizing broadband microwave components such as filters and amplifiers.

Pulse Generator

SSG6000A supports AM and pulse modulation, pulse sequence generator, power meter control and other functions. Pulse modulation on/off ration is more than 80 dB, and the rise/fall time is less than 15 ns. Pulse train generator has pulse width of 20 ns ~ 300 s and as many as 2047 different pulses. The pulse repetition period can be changed from 1 to a maximum of 65,535 which produces a very long pulse train that can be used for testing. SSG6000A generates staggered pulse groups and pulse pauses. The pulse width and the pulse pause can be set independently and separately for each pulse. SSG6000A meets the need of fast scanning in broadband test with step/list scanning mode.

Product parameter

View All Parameters
Created with Pixso.

Configure your instrument

Created with Pixso.
Options
Created with Pixso.
Accessories

Models

Inquire
Add to Compare ModelsFrequency RangeFrequency ResolutionMax output powerPhase Noise Price (Tax Not Included)

Resources

Universal accessories
Created with Pixso. Created with Pixso.

Product
Description
USB Cable
USB Cable

USB-A to USB-B. Used to connect instrument to PC for communication.

Power cord
Power cord

The instrument comes standard with a power cord that conforms to the national standard of the user. Additional power cords in different regions can be purchased separately.

2.92 mm F-F connector
2.92 mm F-F connector

Click to view the RF cable and connector manual

SSG6000A quick guide
SSG6000A quick guide

SSG6000A series quick operation guide. For more detailed operation tutorials, please refer to the user manual.

Universal accessories
Created with Pixso. Created with Pixso.

Product
Description
USB-GPIB Adapter
USB-GPIB Adapter

Expand the instrument’s USB interface into a GPIB interface. Using GPIB commands allows for easier execution of various operational tasks. The USB interface adheres to the USB 2.0 specification, while the GPIB interface complies with the IEEE 488.2 standard.

SSG6000A-RMK
SSG6000A-RMK

Rack Mount kit, Height 2U
