Product Introduction

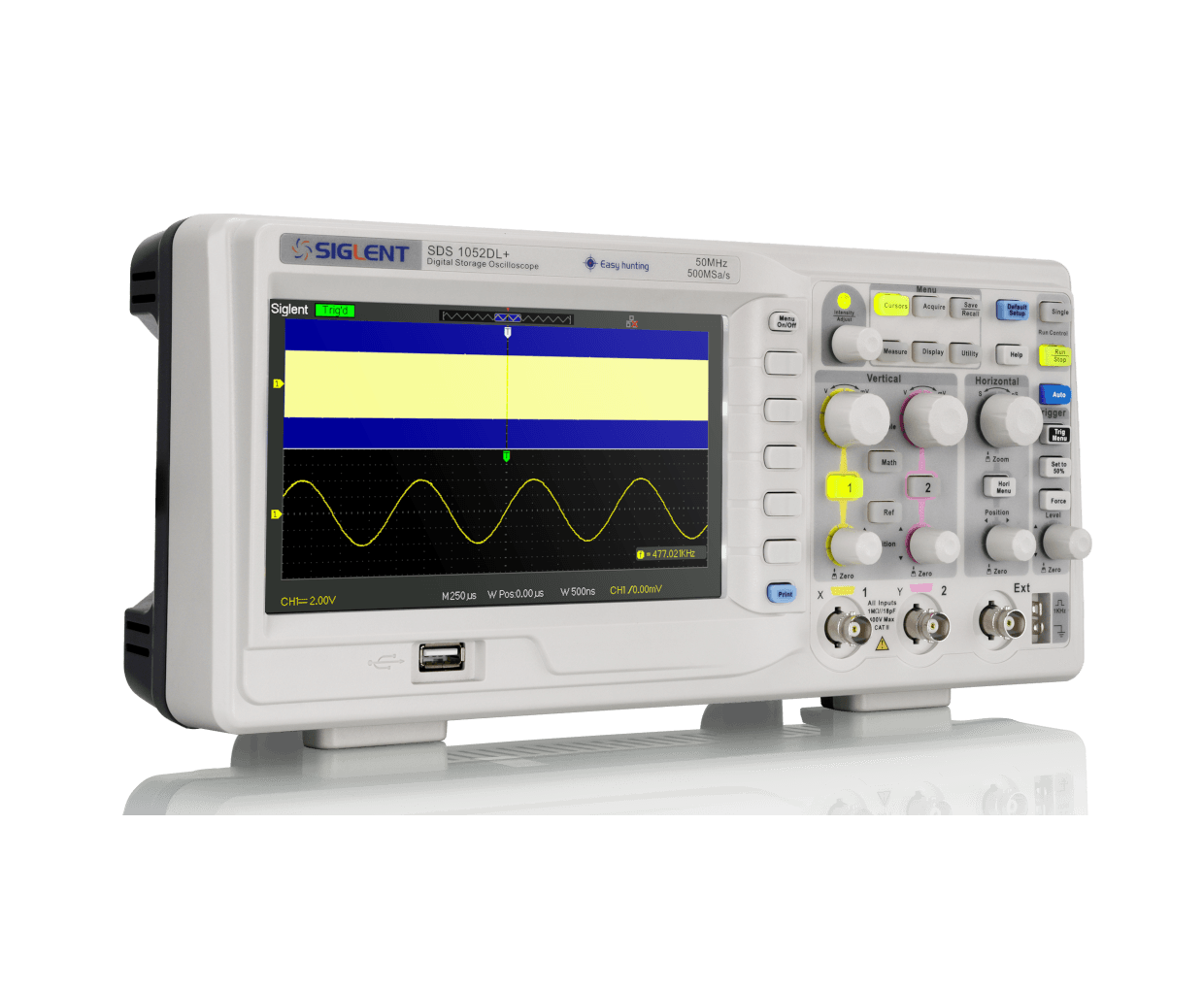

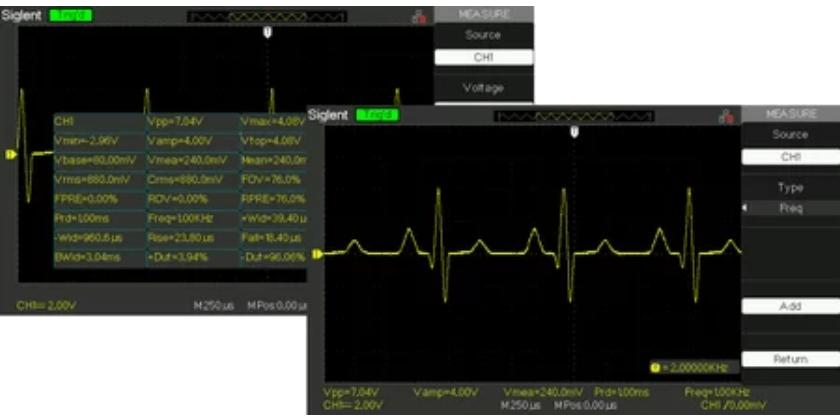

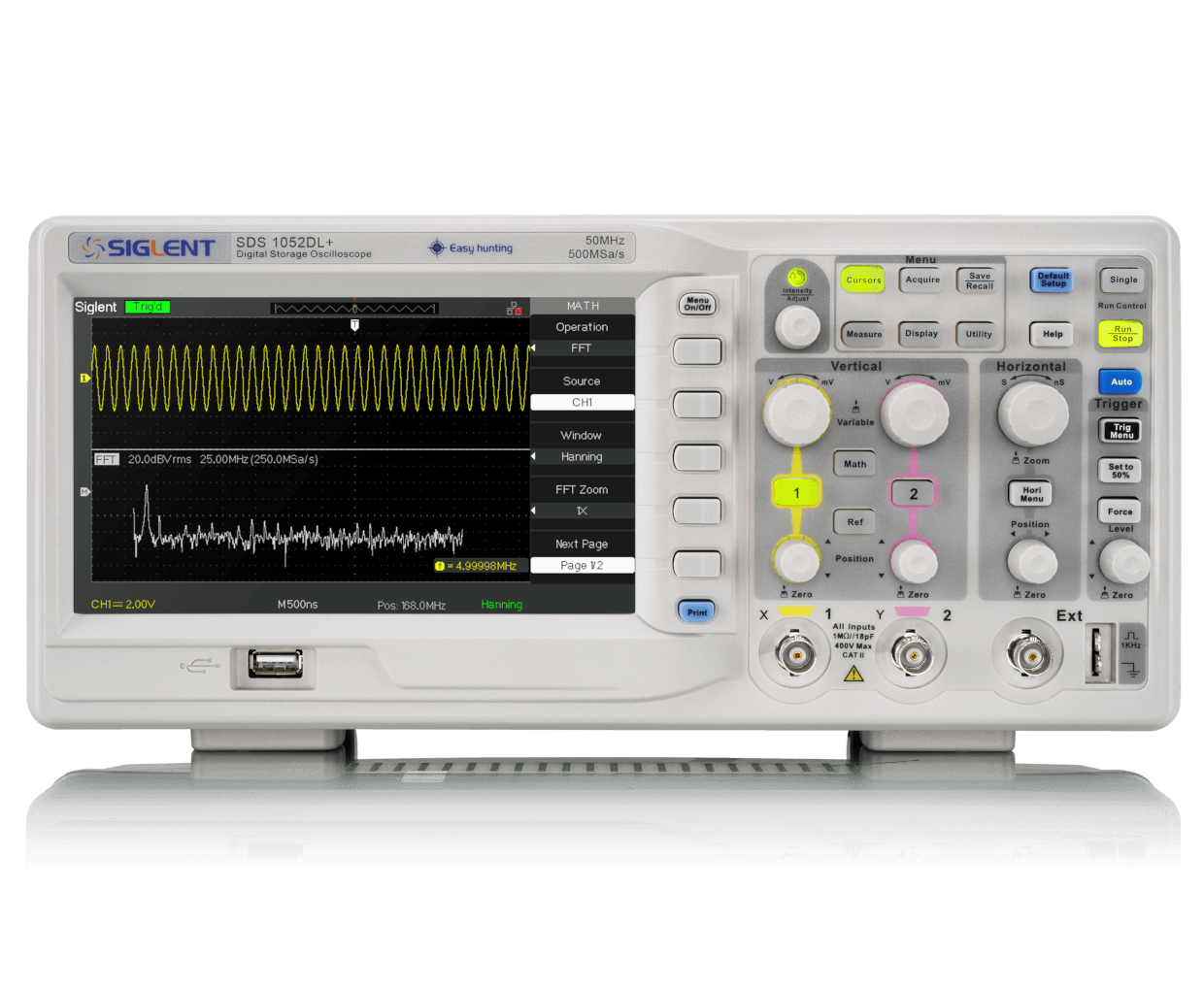

SIGLENT SDS1000DL+ Digital Storage Oscilloscopes are dual-channel, 50 MHz oscilloscopes. The SDS1000DL+ includes a 30 kpts memory depth that helps to ensure accurate waveform resolution and to capture long signal lengths. With its 7-inch TFT-LCD (800*480) screen, there is adequate screen space to help better see and analyze waveform details. Along with a 500 MSa/s sampling rate, the SDS1000DL+ oscilloscope supports 32 parameters measurements and common mathematical operations to speed up complex/repetitive measurements.
Key Features
- 50 MHz bandwidth models
- Memory Depth up to 32 kpts
- Real-time sampling rate up to 500 MSa/s, Equivalent-time sampling rate up to 50 GSa/s
- 6 digit frequency counter
- I/O：USB Host、USB Device、LAN、Pass/Fail
