High Resolution Oscilloscope

SDS2000X HD Series

SDS2000X HD

Bandwidth

350 MHz

Real time sampling rate

2 GSa/s

Channels

4 + EXT

Created with Pixso.
Created with Pixso.
Created with Pixso. Quote
Created with Pixso. Datasheet
Created with Pixso. Video

SDS2000X HD

SDS2000X HD

Created with Pixso.

Product Introduction

SIGLENT’s SDS2000X HD series high resolution digital storage oscilloscopes are based on 2 GSa/s, 12-bit Analog to Digital converters and front ends with excellent noise floor performance. They are available in bandwidths of 350 MHz, 200 MHz, have maximum record length of 200 Mpts/ch, and display 4 analog channels + 16 digital channels mixed signal analysis ability. The combination of long storage depth and multiple measurement functions is an ideal choice for electronic enthusiasts and students to learn electronic measurement.

Key Features

  • Bandwidth：200 MHz，350 MHz
  • ADC：12-bit
  • Real time sampling rate： 2 GSa/s
  • Memory depth：200 Mpts/ch
  • Capture rate：500,000 wfm/s (Sequence mode)
  • Low noise floor: Only 70 µVrms at 500 MHz bandwidth.

Product advantage

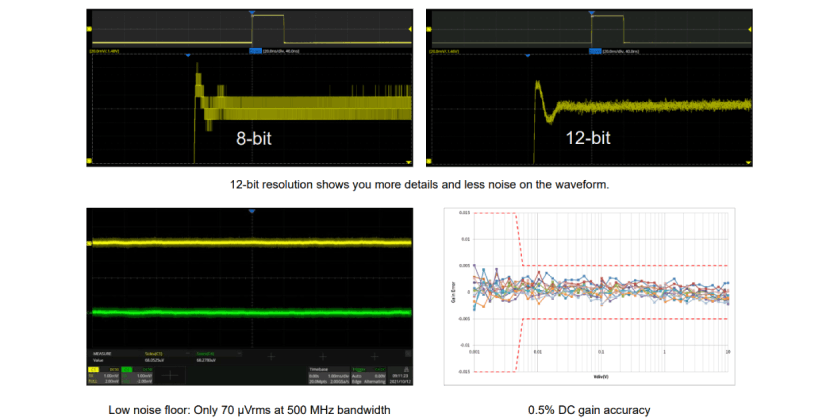

12-bit High Resolution

  • 12-bit resolution shows you more details and less noise on the waveform.
  • 0.5% DC gain accuracy.
  • Low noise floor: Only 70 µVrms at 500 MHz bandwidth.

Powerful Measurement Functions

​The SDS2000X HD supports many parameter measurements, including 4 categories: horizontal, vertical, miscellaneous, and CH delay providing a total of 50+ different types of measurements. Measurements can be performed within a specified gate period. Measurements on Math, Reference, and History frames are supported.

Power Loop Response Analysis (Bode Plot)

Stability is a very important indicator in power supply design. In general, stability measurement requires a special frequency response analyzer, but it is very expensive. Siglent offers an affordable solution: the oscilloscope can control the built-in waveform generator or a stand-alone SIGLENT generator, to scan the amplitude and phase-frequency response of the DUT, and display the data as a Bode Plot. This makes it possible to replace expensive network analyzers in some applications

· Higher measurement sensitivity and accuracy
· Variable excitation scan mode allowed for complex test scenarios of the power control loop test box
· User-friendly UI design
· List and cursor measurements, more intuitive

Serial Bus Decode

Display the decoded characters through the events list. Bus protocol information can be quickly and intuitively displayed in tabular form. I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, and Manchester are supported

Product parameter

View All Parameters
Created with Pixso.

Configure your instrument

Created with Pixso.
Options
Created with Pixso.
Accessories

Models

Add to Compare ModelsBandwidthChannelsVertical ResolutionSampling RateMemory DepthCapture Rate Price

Resources

Probe (Standard)
Created with Pixso. Created with Pixso.

Product
Description
SP5050A
SP5050A

Passive probe, 500 MHz bandwidth, 10X attenuation ratio, input impedance of 12pF || 10MΩ, with automatic identification function.

Click to view the probe manual

Other
Created with Pixso. Created with Pixso.

Probe
Created with Pixso. Created with Pixso.

Product
Description
SPL2016
SPL2016

16-channel logic probe (hardware), sampling rate and storage depth are determined by oscilloscope, which is suitable for dingyang technology SDS7000A, SDS6000 Pro, SDS6000L, SDS5000X HD, SDS5000X, SDS3000X HD, SDS2000X HD and SDS2000X Plus models.

Click to view the probe manual

HPB4010
HPB4010

High voltage probe, DC-40 MHz bandwidth, 1000X attenuation ratio, input impedance 3pF || 100MΩ.

Click to view the probe manual

DPB1300
DPB1300

High voltage differential probe, 50 MHz bandwidth, 50X/500X attenuation ratio, maximum differential voltage ±1300V, differential input impedance 2pF || 10MΩ, BNC interface.

Click to view the probe manual

DPB4080
DPB4080

High voltage differential probe, 50 MHz bandwidth, 10X/100X attenuation ratio, maximum differential voltage 800 V, differential input impedance 1.2pF || 54MΩ, BNC interface.

Click to view the probe manual

DPB5150
DPB5150

High voltage differential probe, bandwidth of 70 MHz, attenuation ratio of 50X/500X, maximum differential voltage of ±1500V, differential input impedance of 2pF || 10MΩ, BNC interface.

Click to view the probe manual

DPB5150A
DPB5150A

High voltage differential probe, 100 MHz bandwidth, 50X/500X attenuation ratio, maximum differential voltage ±1500V, differential input impedance 2pF || 10MΩ, BNC interface.

Click to view the probe manual

DPB5700
DPB5700

High voltage differential probe, 70 MHz bandwidth, 100X/1000X attenuation ratio, maximum differential voltage 7000 v, differential input impedance 2.5pF || 40MΩ, BNC interface.

Click to view the probe manual.

DPB5700A
DPB5700A

High voltage differential probe, 100 MHz bandwidth, 100X/1000X attenuation ratio, maximum differential voltage 7000 v, differential input impedance 2.5pF || 40MΩ, BNC interface.

Click to view the probe manual

CPL5100
CPL5100
Current probe, DC-600 kHz bandwidth, attenuation ratio of 10X/100X, current range of 50mA ~ 100Apk, powered by 12V adapter.
CP4020
CP4020

Current probe, DC-200 kHz bandwidth, attenuation ratio of 20X/200X, maximum input of 20Arms/60Ap-p, 9V adapter for power supply.

Click to view the probe manual

CP4050
CP4050

Current probe, DC-1 MHz bandwidth, 2X/20X attenuation ratio, maximum input 50Arms/140Ap-p, 9V adapter power supply.

Click to view the probe manual

CP4070
CP4070

Current probe, DC-200 kHz bandwidth, attenuation ratio of 20X/200X, maximum input of 20Arms/60Ap-p, 9V adapter for power supply.

Click to view the probe manual.

CP4070A
CP4070A

Current probe, DC-300 kHz bandwidth, attenuation ratio of 10X/100X, maximum input of 70Arms/200Ap-p, 9V adapter for power supply.
Click to view the probe manual

CP6030
CP6030

Current probe, DC-50 MHz bandwidth, 1X/10X attenuation ratio, maximum input of 30Arms/50Apk, jaw diameter of 5mm, powered by 12V adapter.

Click to view the probe manual.

CP6030A
CP6030A

Current probe, DC-100 MHz bandwidth, 1X/10X attenuation ratio, maximum input of 30Arms/50Apk, jaw diameter of 5mm, powered by 12V adapter.

Click to view the probe manual.

CP6150
CP6150

Current probe, DC-12 MHz bandwidth, attenuation ratio of 10X/100X, maximum input of 150Arms/300Apk, jaw diameter of 20mm, powered by 12V adapter.

Click to view the probe manual.

CP6500
CP6500

Current probe, DC-5 MHz bandwidth, attenuation ratio of 10X/100X, maximum input of 500Arms/750Apk, jaw diameter of 20mm, powered by 12V adapter.

Click to view the probe manual.

ODP6050B
ODP6050B

Optical isolation voltage probe, 500 MHz bandwidth, common mode rejection ratio of 160dB, measuring voltage of 2.5 V ~ 2,500 V, isolation voltage of ±60kV.

Click to view the probe manual.

ODP6100B
ODP6100B

Optical isolation voltage probe, 1 GHz bandwidth, common mode rejection ratio of 160dB, measuring voltage of 2.5 V ~ 2,500 V, isolation voltage of ±60kV.

Click to view the probe manual.

Other
Created with Pixso. Created with Pixso.

Trigger/decode Options
Created with Pixso. Created with Pixso.

Product
Description
SDS2000HD-Manch
SDS2000HD-Manch

Manchester protocol decoding (software)

SDS2000HD-CANFD
SDS2000HD-CANFD

CAN FD trigger & decode

SDS2000HD-Flexray
SDS2000HD-Flexray

FlexRay trigger & decode

SDS2000HD-SENT
SDS2000HD-SENT

SENT Protocol Trigger and Decoding Kit (Software)

SDS2000HD-I2S
SDS2000HD-I2S

I2S Trigger/Decode Option (Software)

SDS2000HD-1553B
SDS2000HD-1553B

MIL-STD-1553B trigger & decode (software)

SDS2000HD-ARINC
SDS2000HD-ARINC

ARINC429 decode (software)

Analysis Options
