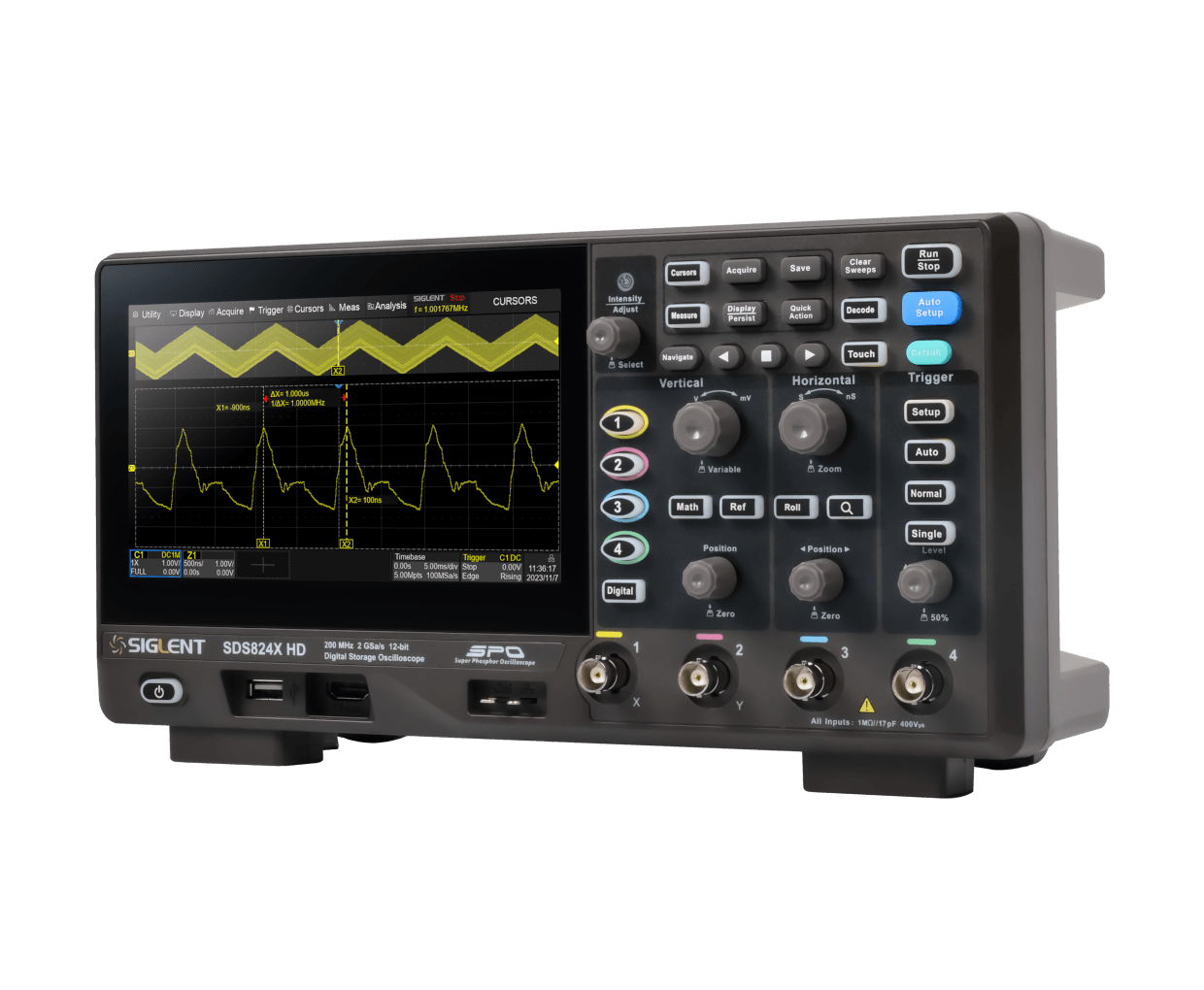

High resolution oscilloscope

SDS800X HD Series

SDS800X HD

Bandwidth

70-200 MHz

Real time sampling rate

2 GSa/s

Channels

2/4

Created with Pixso.
Created with Pixso.
Created with Pixso. Quote
Created with Pixso. Datasheet
Created with Pixso. Video

SDS800X HD

SDS800X HD

Created with Pixso.

Product Introduction

SDS800X HD series oscilloscopes are oriented to high-performance testing applications, providing a bandwidth range from 70 MHz to 200 MHz, and are suitable for testing and debugging of various precision electronic devices. This series also supports 2-4 analog channels, and can be optionally expanded to meet diverse test requirements. Its sampling rate is as high as 2 GSa/s and waveform capture rate is 500,000 wfm/s, which ensures fast capture of transient signals. The vertical resolution of 12-bit, combined with the storage depth of 100 Mpts, brings clear and detailed waveform data to users, and is an effective assistant for engineers to design circuits and troubleshoot.

Key Features

  • ADC：12-bit
  • Bandwidth：70/100/200 MHz
  • Memory depth：50/100 Mpts
  • Real time sampling rate：2 GSa/s
  • Capture rate：500,000 wfm/s（Sequence Mode）
  • 7 TFT-LCD with capacitive touch screen

Product advantage

12-bit High Resolution

High-resolution oscilloscopes have excellent signal detection and display capabilities, which help analyze the details and characteristics of signals, and provide a great advantage in applications such as high-precision power supply testing, power supply ripple measurement, equipment performance optimization, and engine control unit testing.

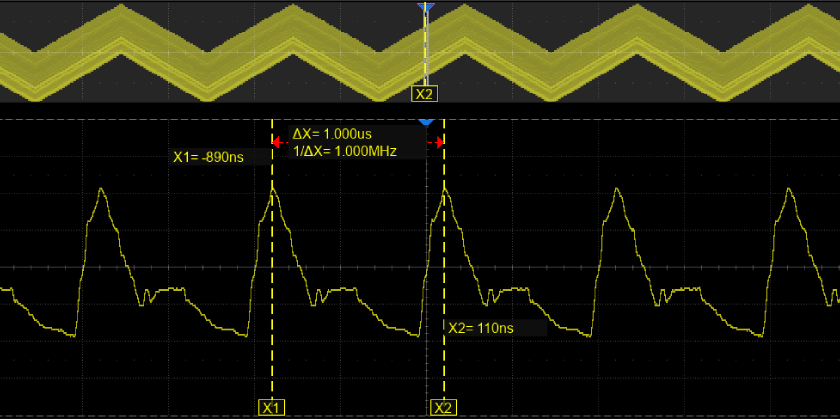

Long Memory Depth

With a maximum memory depth of up to 100 Mpts, SDS800X HD is suitable for observing and analyzing long-duration signals, low-frequency signals, and transient phenomena. With a large memory depth, the oscilloscope is able to process more data, and the accuracy and stability of the calculation results are also higher.

Efficient Power Analysis

Power analysis with Siglent’s voltage probe (DPB5000 series) and current probe (CP6000 series) can quickly and accurately analyze 12 parameters such as power quality, current harmonics, inrush current, transient response, etc., which helps engineers eliminate cumbersome manual configurations and complex formulae calculations. It is extremely suitable for observing abnormal harmonics, analyzing harmonics, evaluating equipment stability, judging electromagnetic interference and other tests.

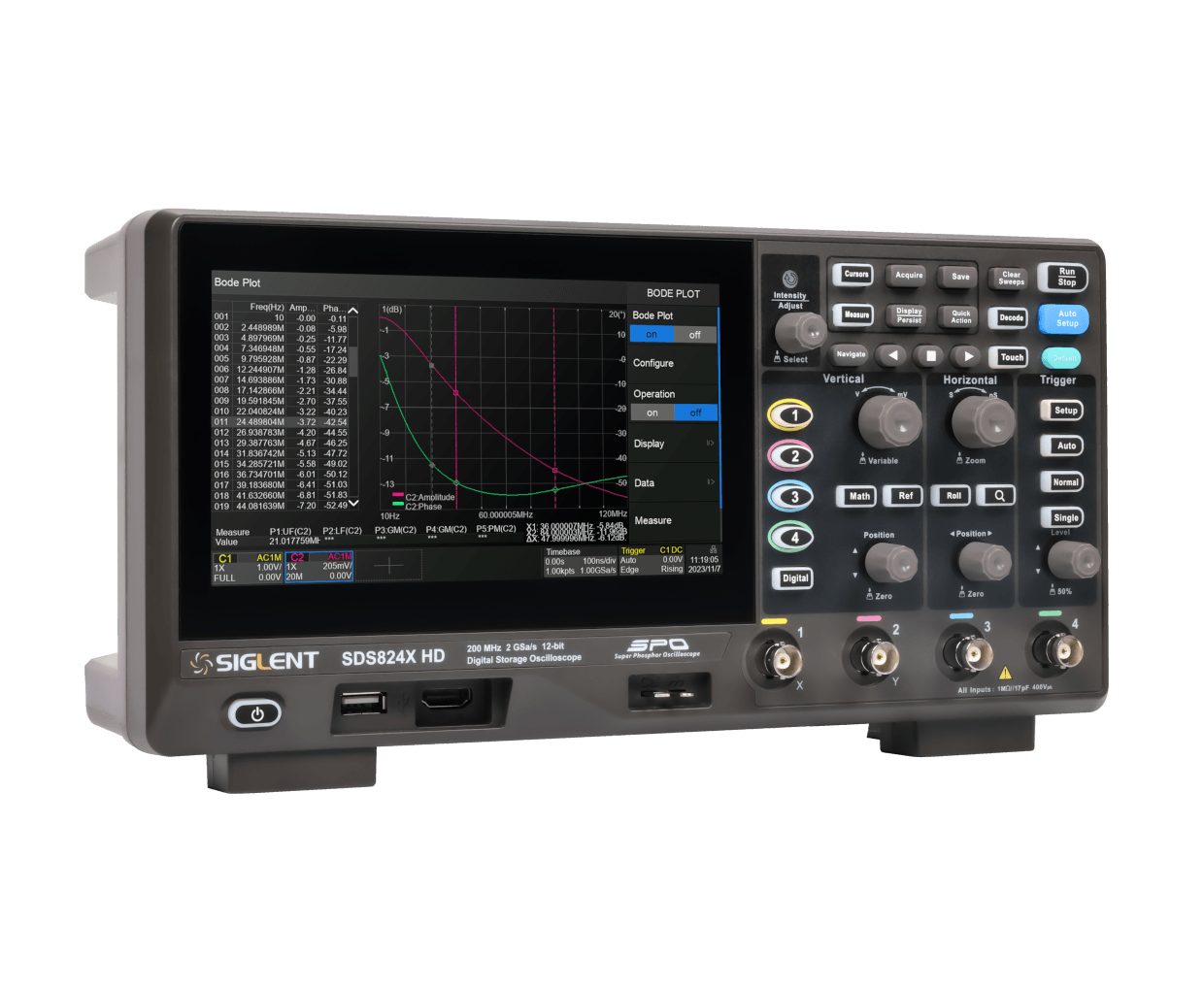

Excellent Loop Response Testing

SDS800X HD comes standard with Bode plot, and with Siglent’s Isolated Signal Generator option (SAG1021I) or Siglent’s Arbitrary Waveform Generator, it can perform loop response testing, provide the frequency response curve of the DUT, and easily obtain the gain and phase values at each frequency point. Meanwhile, with the help of data list, cursor measurement, and automatic measurement functions, you can analyze the Bode Plot curve in detail, judge the system stability and so on.

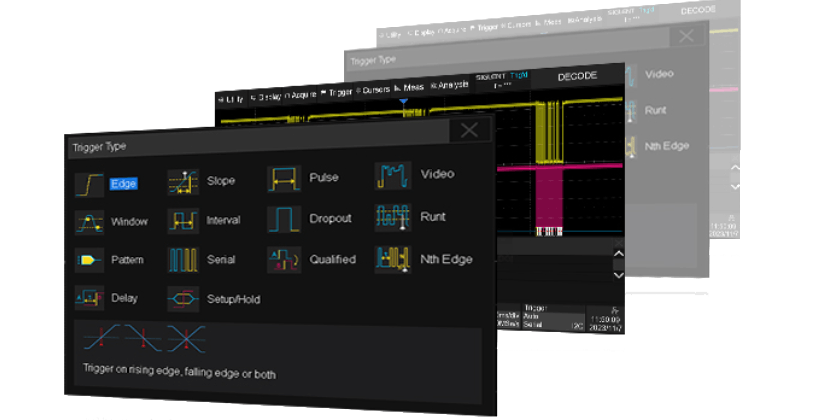

Multiple Triggering and Decoding

SDS800X HD has a variety of triggering types, including edge, slope, delay, set/hold, and a variety of bus triggers (serial triggers). It supports triggering and decoding of I2C, SPI, UART protocols in the embedded industry and CAN, LIN protocols in the automotive industry, and can accurately capture and intuitively display the protocol information of the bus in a table or in other ways, so that it can be stably tested.

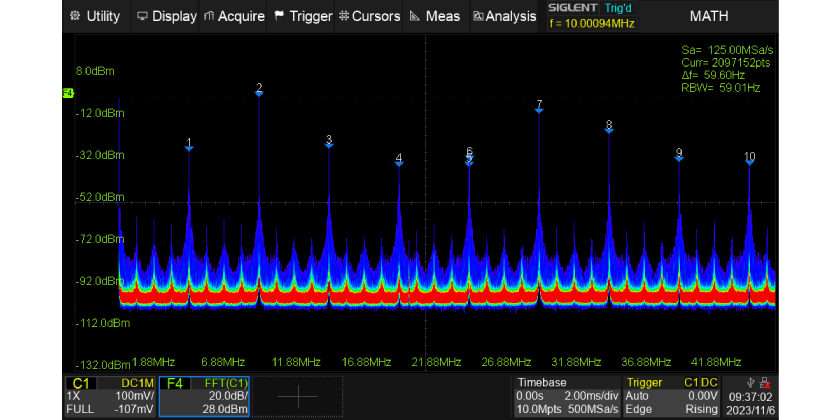

Powerful Math Functions

Built-in FFT function, the maximum number of operation points is 2Mpts, 4 independent Math waveforms, and supports user-defined operation expressions. With superior spectral resolution, it can more accurately analyze the frequency components and energy distribution of signals, easily transforming into a spectrum analyzer. FFT supports a variety of window functions, ordinary, average, maximum value hold mode, support for peak detection, automatic detection of stray frequencies and marking the formation of a list of displays.

16-channel digital logic signal analysis

SDS800X HD can be used with Siglent’s 16-channel logic analyzer probe option (SLA1016) to add 16 digital channels to the instrument without affecting other test functions, realizing mixed-signal acquisition and analysis, and quickly solving analog-digital mixed-signal design and analysis problems.

Product parameter

View All Parameters
Created with Pixso.

Configure your instrument

Created with Pixso.
Options
Created with Pixso.
Accessories

Models

Add to Compare ModelsBandwidthChannelsVertical ResolutionSampling RateMemory DepthCapture Rate Price

Resources

Probe (Standard)
Created with Pixso. Created with Pixso.

Product
Description
PP215
PP215

Passive probe, 200 MHz bandwidth, 1X/10X attenuation ratio and input impedance of 13pF || 1MΩ/10MΩ.

Click to view the probe manual

PP510
PP510

Passive probe, 100 MHz bandwidth, 1X/10X attenuation ratio, and input impedance of 13pf ||| 1mω/10mω.

Click to view the probe manual

PB470
PB470

Passive probe, 70 MHz bandwidth, 1X/10X attenuation ratio and input impedance of 13pF || 1MΩ/10MΩ.

Click to view the probe manual

Other
Created with Pixso. Created with Pixso.

Probe
Created with Pixso. Created with Pixso.

Product
Description
CPL5100
CPL5100
Current probe, DC-600 kHz bandwidth, attenuation ratio of 10X/100X, current range of 50mA ~ 100Apk, powered by 12V adapter.
DPB1300
DPB1300

High voltage differential probe, 50 MHz bandwidth, 50X/500X attenuation ratio, maximum differential voltage ±1300V, differential input impedance 2pF || 10MΩ, BNC interface.

Click to view the probe manual

DPB4080
DPB4080

High voltage differential probe, 50 MHz bandwidth, 10X/100X attenuation ratio, maximum differential voltage 800 V, differential input impedance 1.2pF || 54MΩ, BNC interface.

Click to view the probe manual

DPB5150
DPB5150

High voltage differential probe, bandwidth of 70 MHz, attenuation ratio of 50X/500X, maximum differential voltage of ±1500V, differential input impedance of 2pF || 10MΩ, BNC interface.

Click to view the probe manual

DPB5150A
DPB5150A

High voltage differential probe, 100 MHz bandwidth, 50X/500X attenuation ratio, maximum differential voltage ±1500V, differential input impedance 2pF || 10MΩ, BNC interface.

Click to view the probe manual

DPB5700
DPB5700

High voltage differential probe, 70 MHz bandwidth, 100X/1000X attenuation ratio, maximum differential voltage 7000 v, differential input impedance 2.5pF || 40MΩ, BNC interface.

Click to view the probe manual.

DPB5700A
DPB5700A

High voltage differential probe, 100 MHz bandwidth, 100X/1000X attenuation ratio, maximum differential voltage 7000 v, differential input impedance 2.5pF || 40MΩ, BNC interface.

Click to view the probe manual

HPB4010
HPB4010

High voltage probe, DC-40 MHz bandwidth, 1000X attenuation ratio, input impedance 3pF || 100MΩ.

Click to view the probe manual

CP4020
CP4020

Current probe, DC-200 kHz bandwidth, attenuation ratio of 20X/200X, maximum input of 20Arms/60Ap-p, 9V adapter for power supply.

Click to view the probe manual

CP4050
CP4050

Current probe, DC-1 MHz bandwidth, 2X/20X attenuation ratio, maximum input 50Arms/140Ap-p, 9V adapter power supply.

Click to view the probe manual

CP4070
CP4070

Current probe, DC-200 kHz bandwidth, attenuation ratio of 20X/200X, maximum input of 20Arms/60Ap-p, 9V adapter for power supply.

Click to view the probe manual.

CP4070A
CP4070A

Current probe, DC-300 kHz bandwidth, attenuation ratio of 10X/100X, maximum input of 70Arms/200Ap-p, 9V adapter for power supply.
Click to view the probe manual

CP6030
CP6030

Current probe, DC-50 MHz bandwidth, 1X/10X attenuation ratio, maximum input of 30Arms/50Apk, jaw diameter of 5mm, powered by 12V adapter.

Click to view the probe manual.

CP6030A
CP6030A

Current probe, DC-100 MHz bandwidth, 1X/10X attenuation ratio, maximum input of 30Arms/50Apk, jaw diameter of 5mm, powered by 12V adapter.

Click to view the probe manual.

CP6150
CP6150

Current probe, DC-12 MHz bandwidth, attenuation ratio of 10X/100X, maximum input of 150Arms/300Apk, jaw diameter of 20mm, powered by 12V adapter.

Click to view the probe manual.

CP6500
CP6500

Current probe, DC-5 MHz bandwidth, attenuation ratio of 10X/100X, maximum input of 500Arms/750Apk, jaw diameter of 20mm, powered by 12V adapter.

Click to view the probe manual.

Other
Created with Pixso. Created with Pixso.

Analysis Options
Created with Pixso. Created with Pixso.

Product
Description
SDS800XHD-PA
SDS800XHD-PA

Power Analysis Option (Software)
