Product Introduction

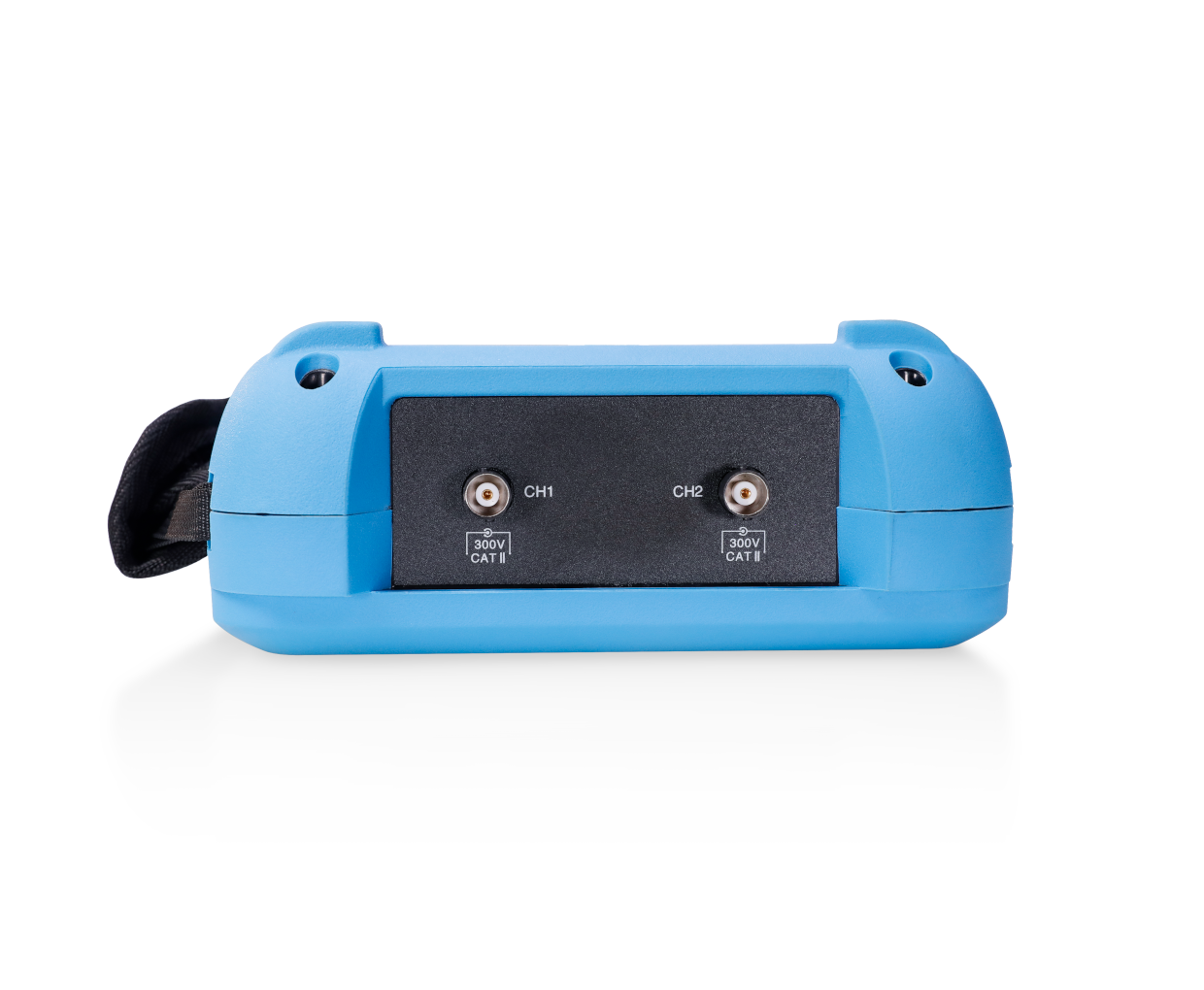

SHS800X series hand-held oscilloscope has won wide recognition in the market for its high cost performance and excellent performance. This series provides bandwidth selection from 100 MHz to 200 MHz, which is suitable for various application scenarios. Its dual-channel design combines the sampling rate of 1 GSa/s and the storage depth of 12 Mpts to ensure the integrity and accuracy of the signal.

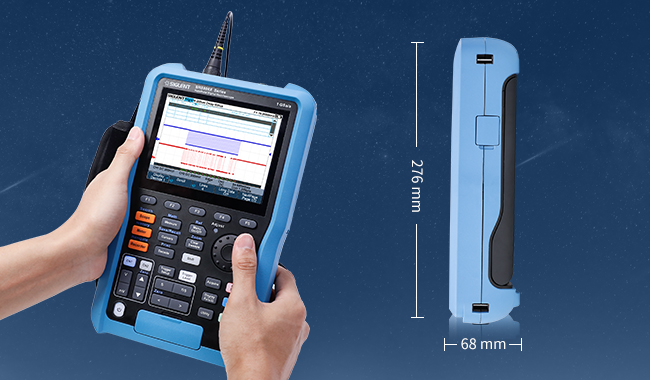

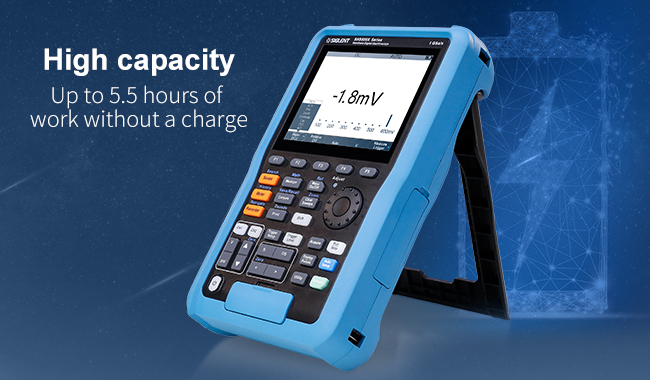

In addition, SHS800X series also integrates eight common multimeter functions, such as voltage, current and resistance, which brings users a more convenient test experience. Long battery life and compact body design make it an ideal choice for engineers to carry around.
Key Features

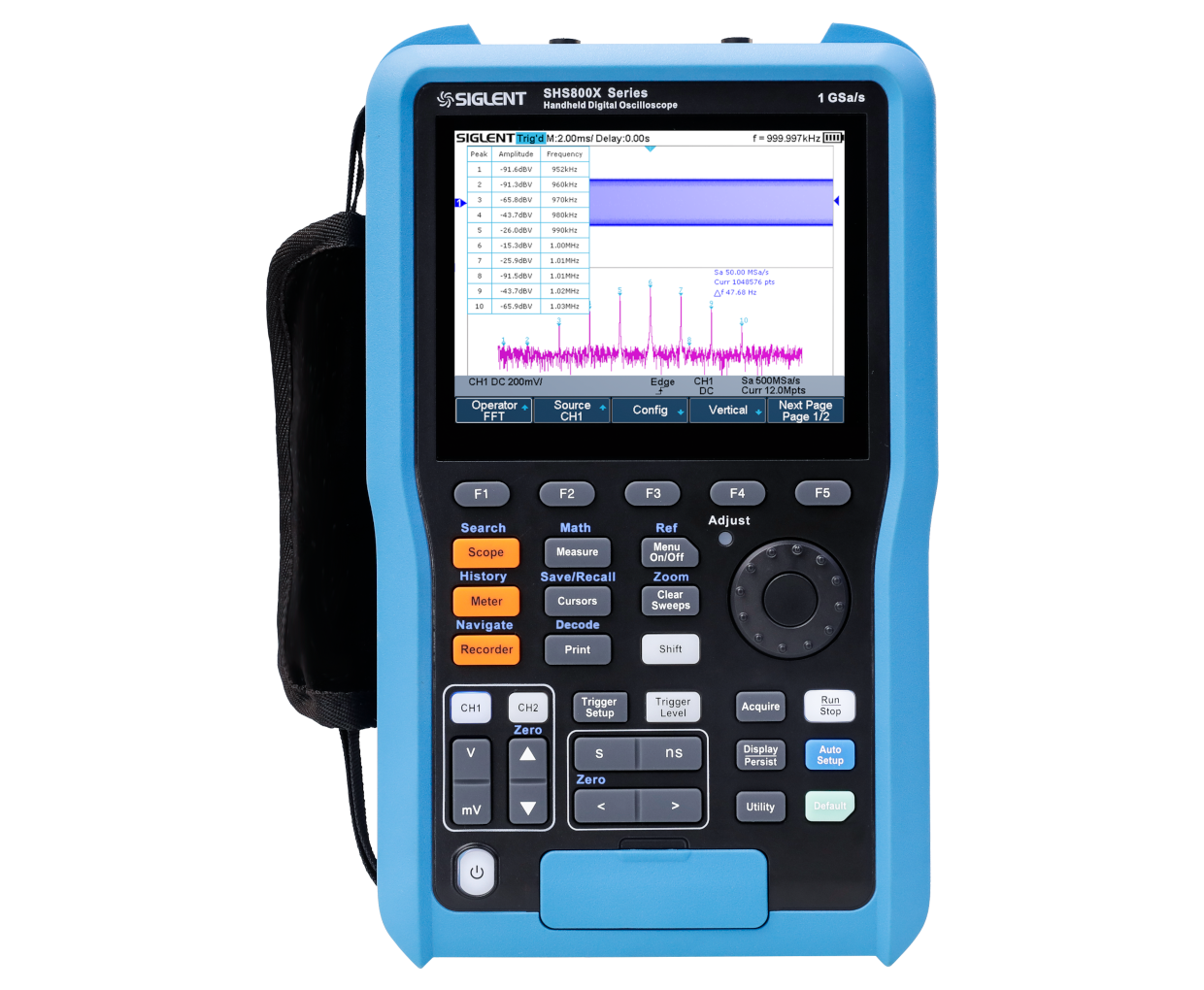

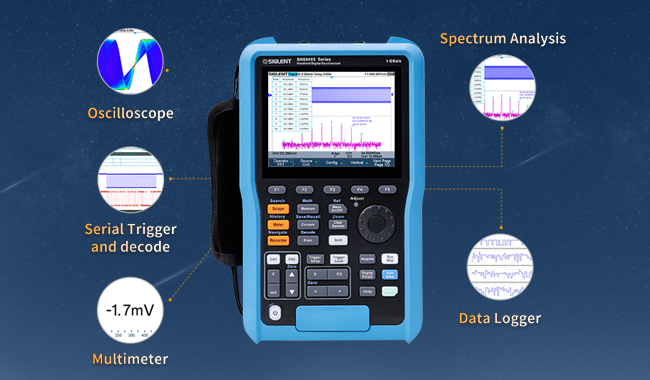

- Integrated oscilloscope, serial trigger and decoder, spectrum analysis, data logger and multimeter functions into a convenient and portable design
- 100 MHz or 200 MHz bandwidth models
- Sampling rate of 1 GSa/s (single-channel)/500 MSa/s (two-channels)
- Record length up to 12 Mpts
- Waveform recording up to 22 hours

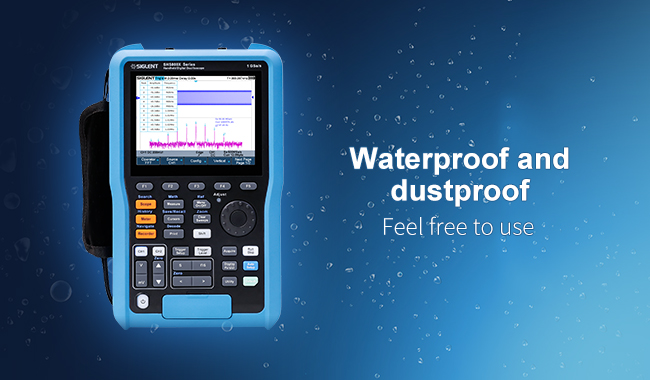

- IP51 dust/water resistance certified
